Product information

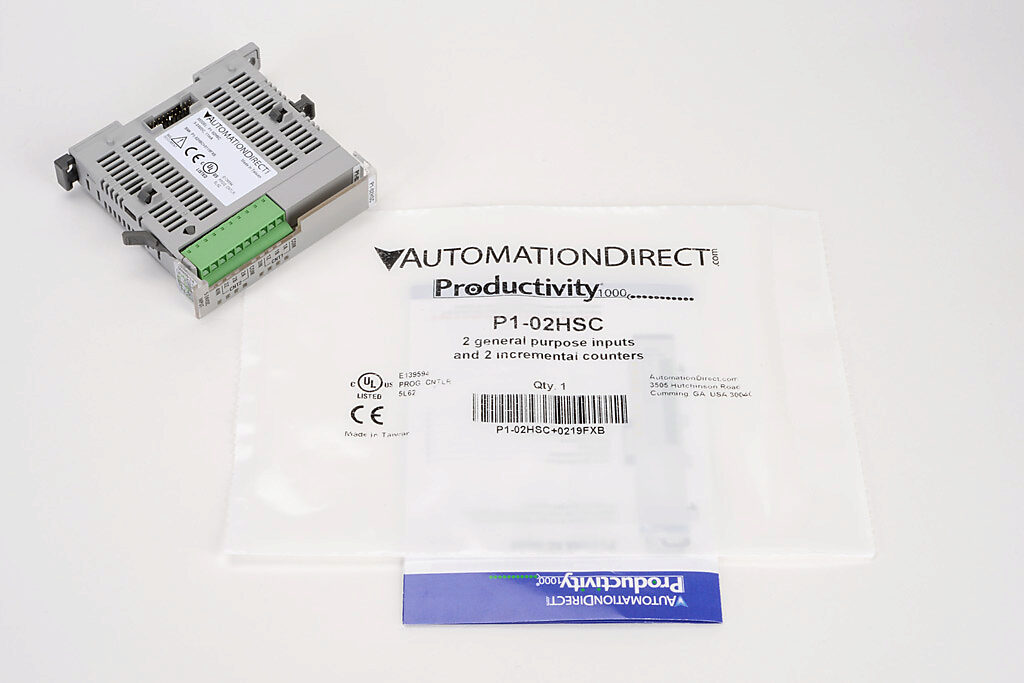

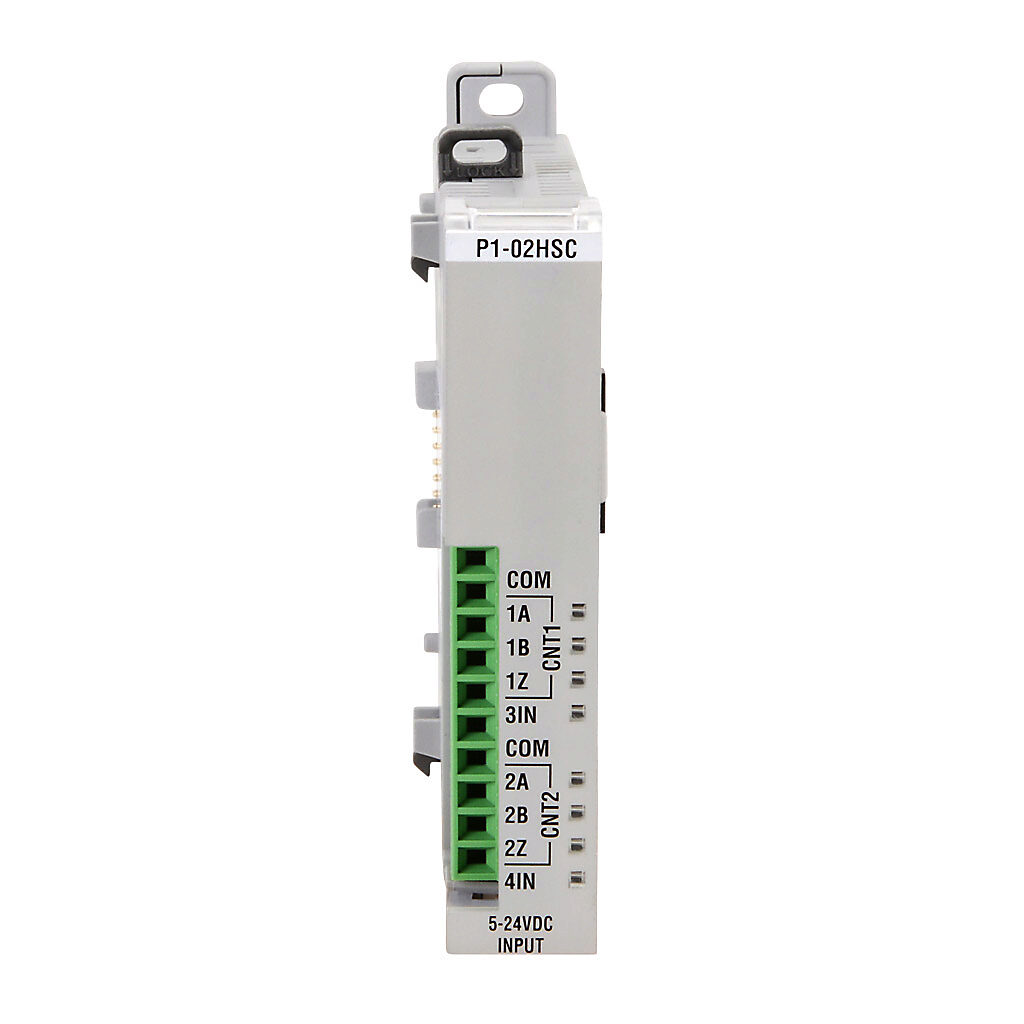

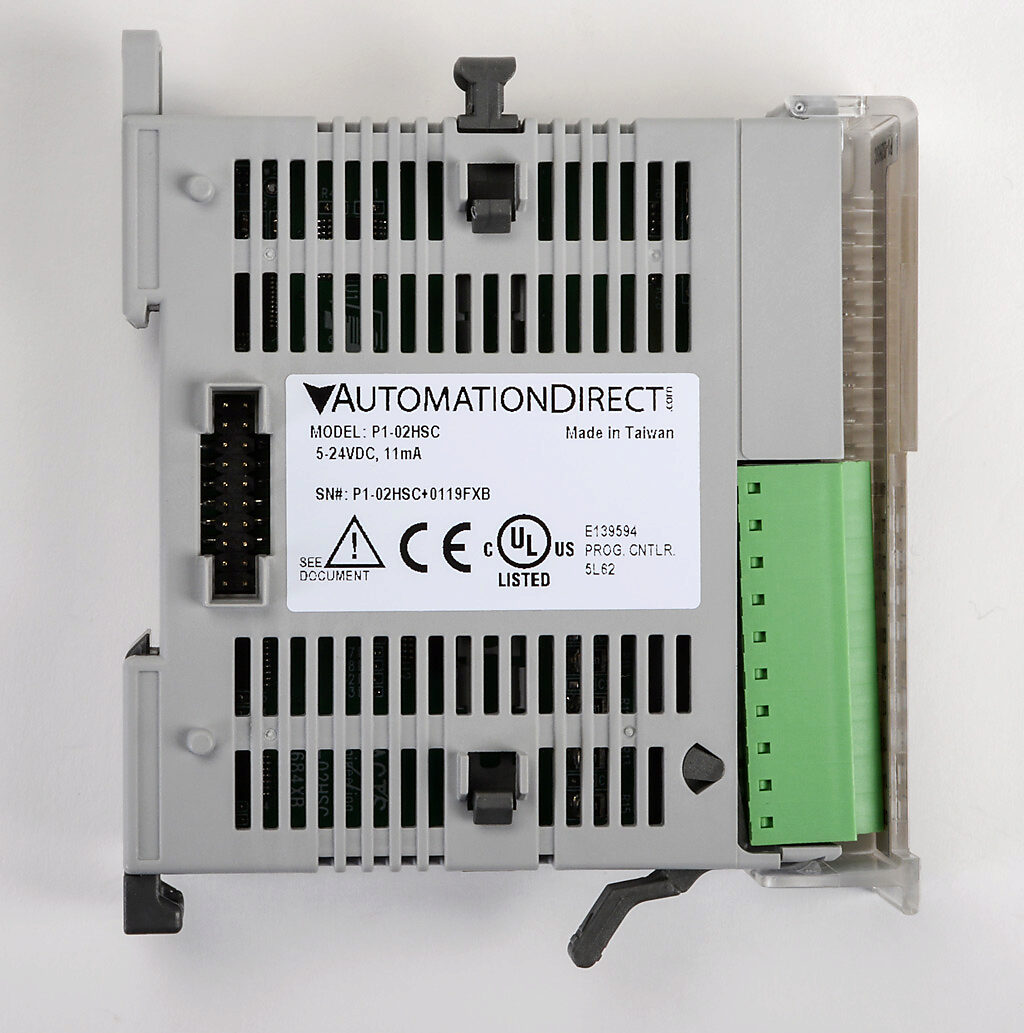

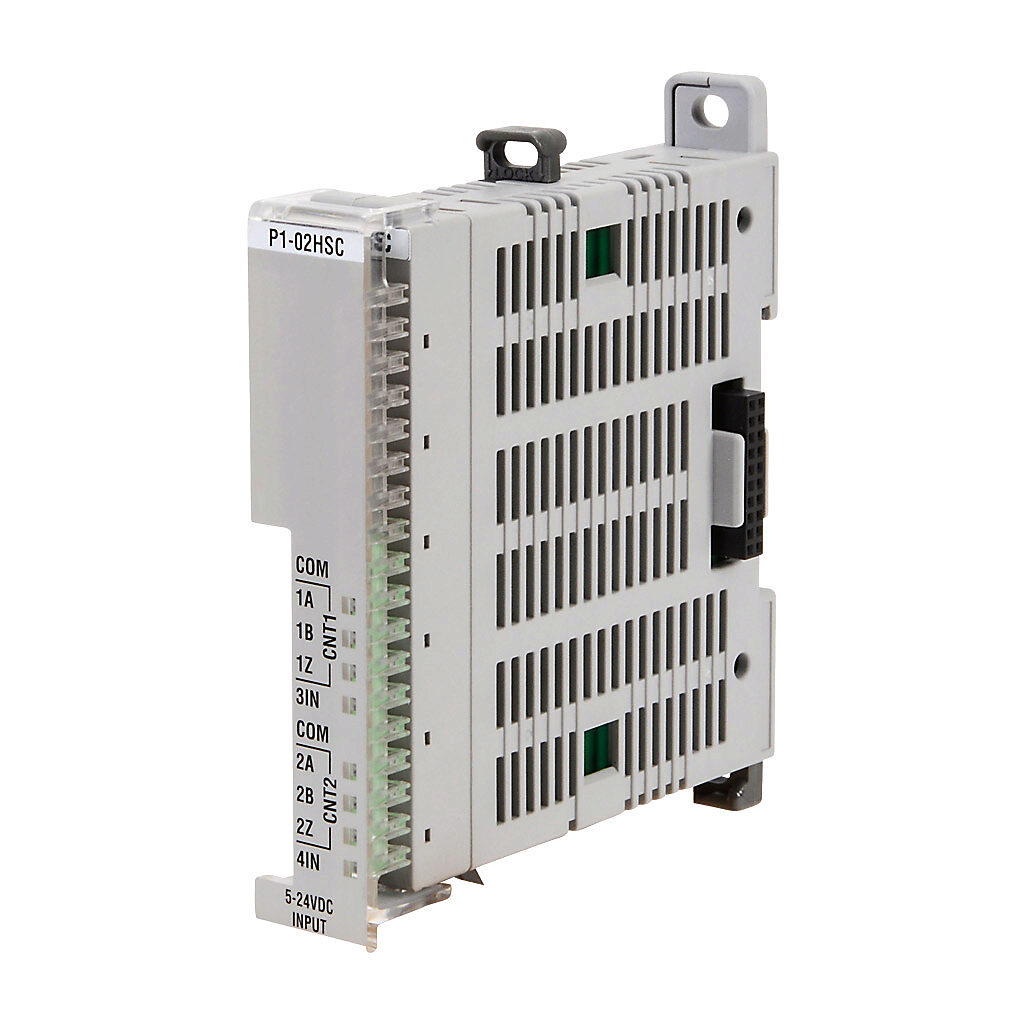

High-Speed isolated NPN/PNP input module for Productivity1000
Up to 15 I/O modules can be connected to a Productivity1000 CPU module to expand the system to a maximum of 240 I/O points.
P1-02HSC specifics:
- High-speed pulse input
- Switching Frequency: 100 kHz
- Number of Input Channels: 2
Specifications
- Quantity per product
- 1
- Short Description
High-Speed Isolated NPN/PNP Input
- Specifications
Specifications of the P1-02HSC module:
- Module Type: High-speed pulse
- Maximum Switching Frequency: 100 kHz
- Number of Input Points: 8
- Number of Input Channels: 2
- Number of General Purpose Input Points: 2
- Discrete Input Type: NPN/PNP
- Number of Non-Isolated Input Commons: 2
Note:
Requires P1-10RTB or P1-10RTB-1 removable terminal block or ZIPLink pre-wired cables
| Title | Download | |
|---|---|---|
| pdf Datasheet P1-02HSC | Download (pdf, 2.41 MB) | |
| pdf User Manual Productivity1000 (1st Ed. Rev. D) | Download (pdf, 52.13 MB) | |
| pdf ZIPLink Wiring system for P1000 PLCs | Download (pdf, 366 KB) |
