Product information

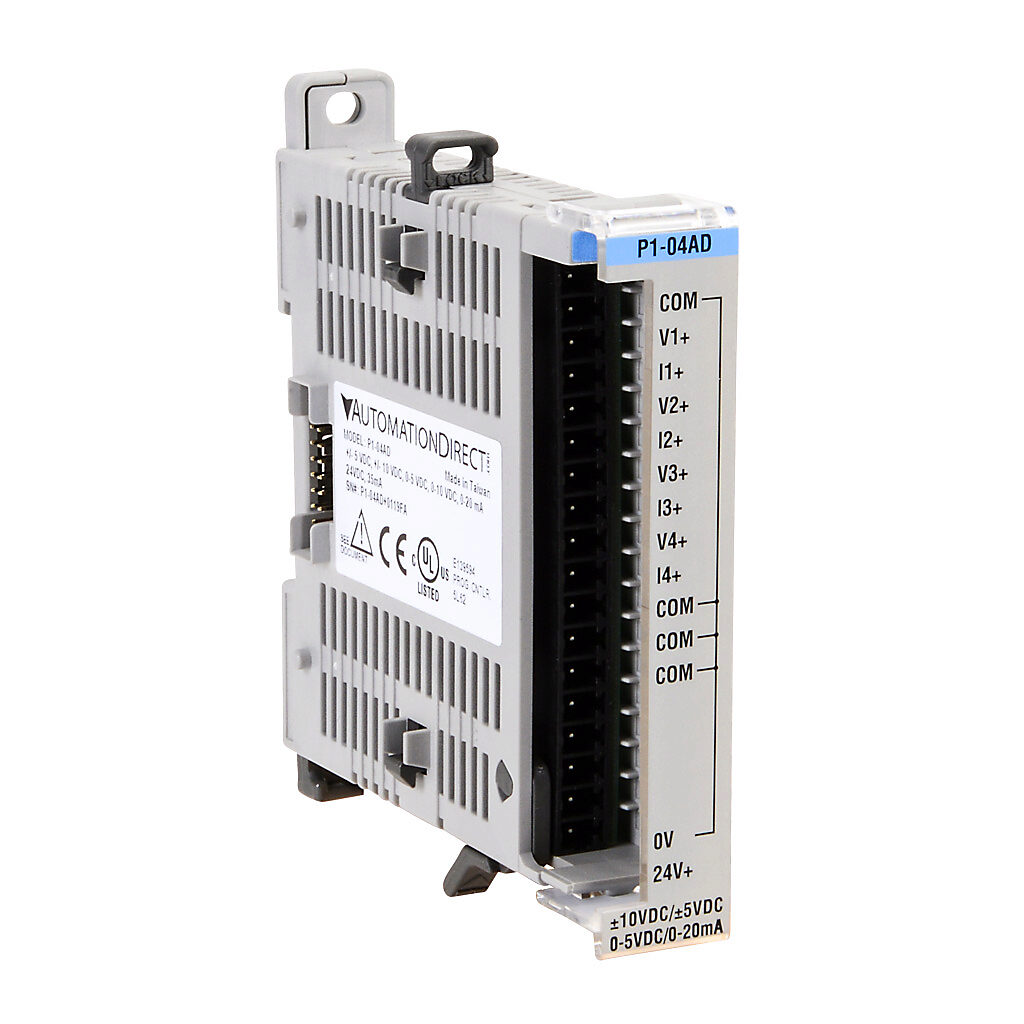

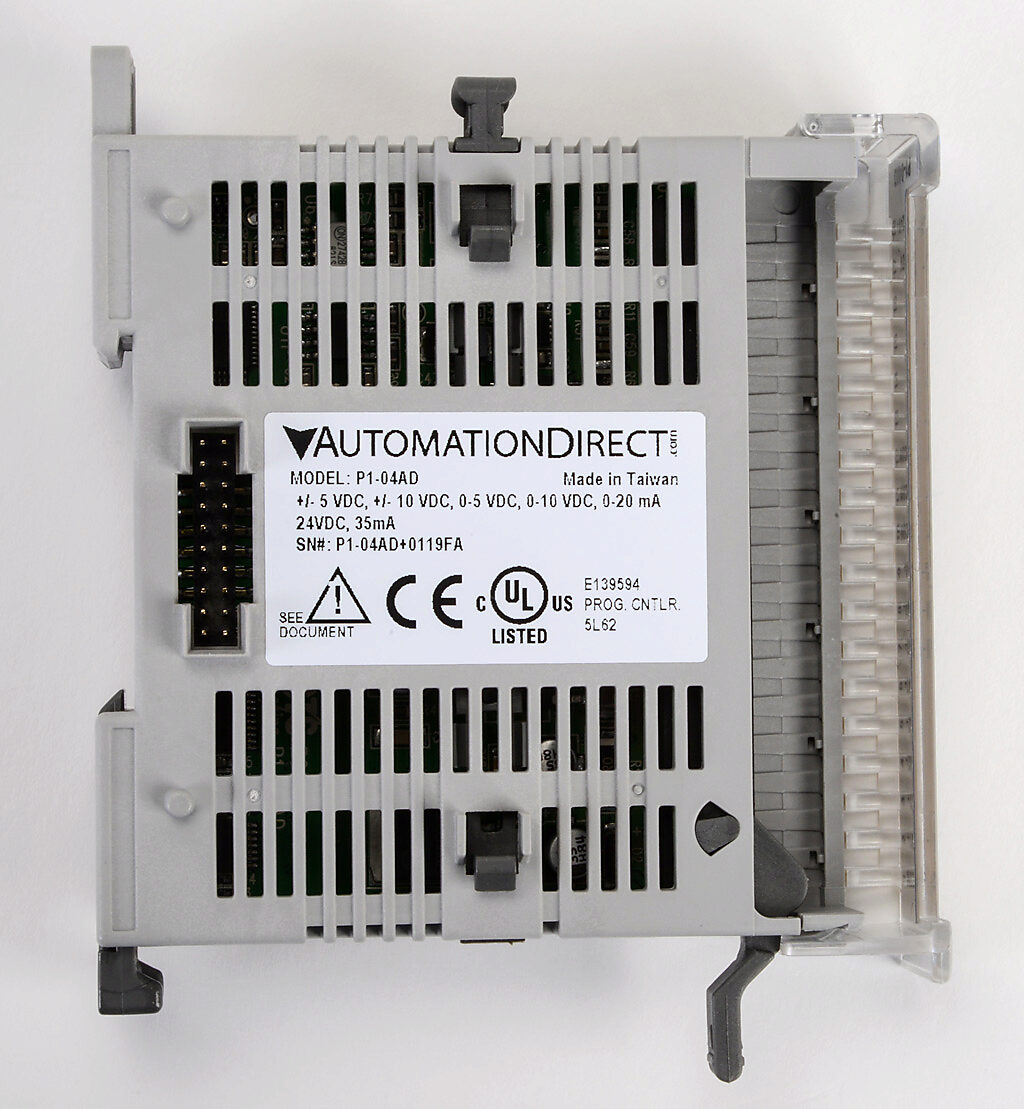

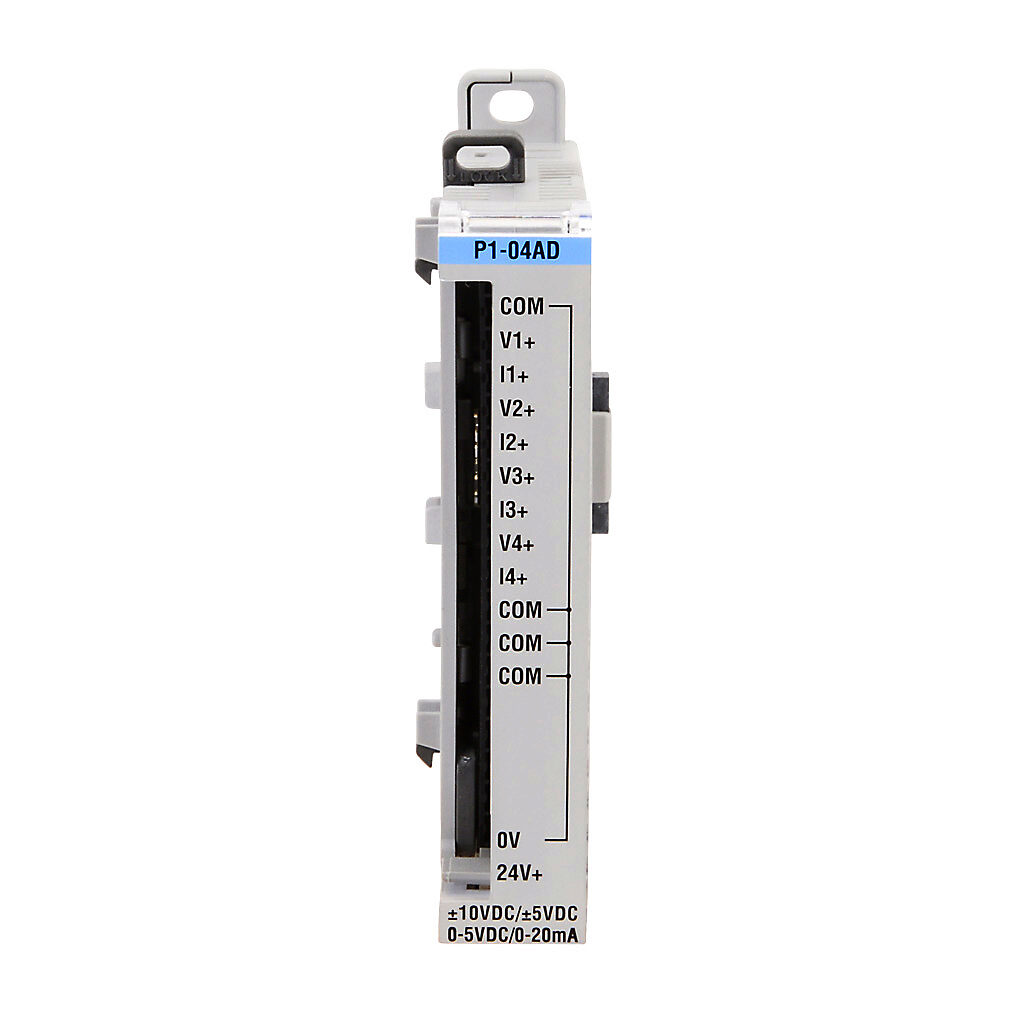

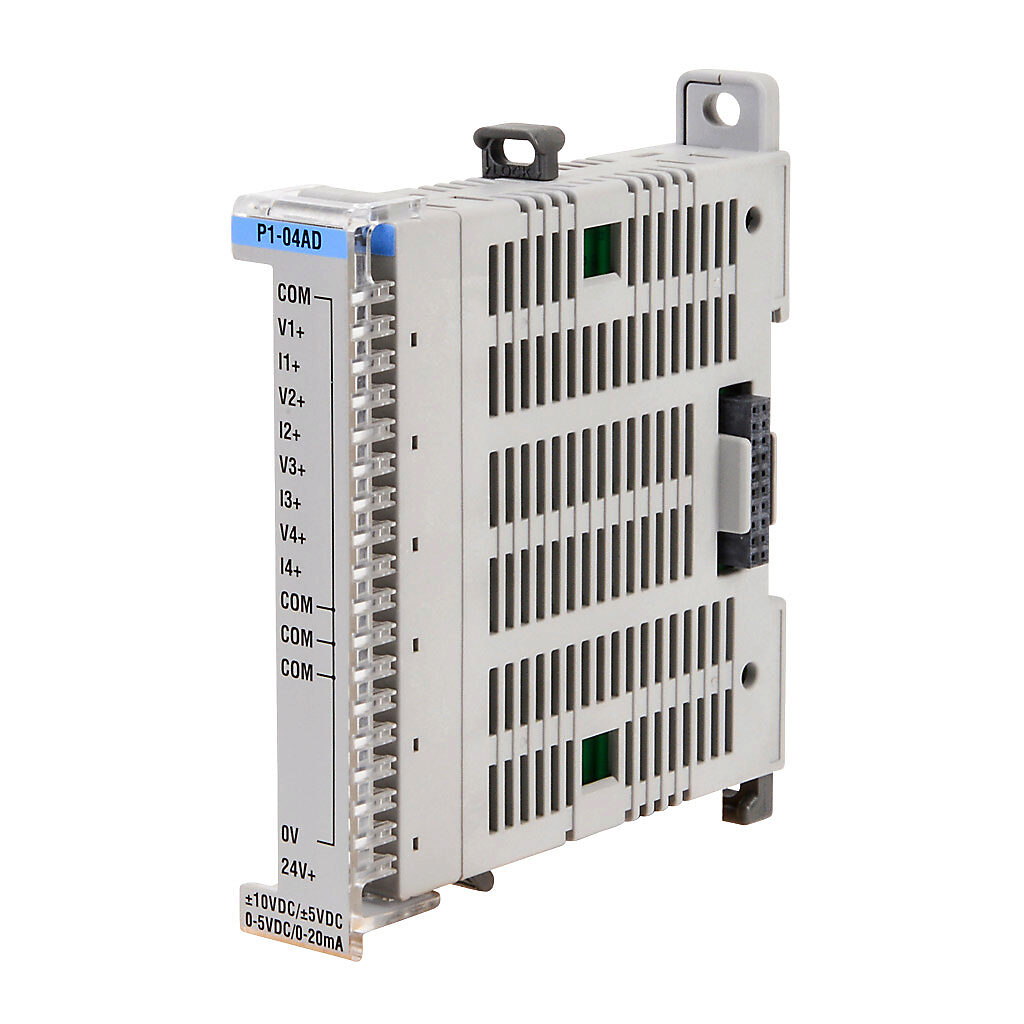

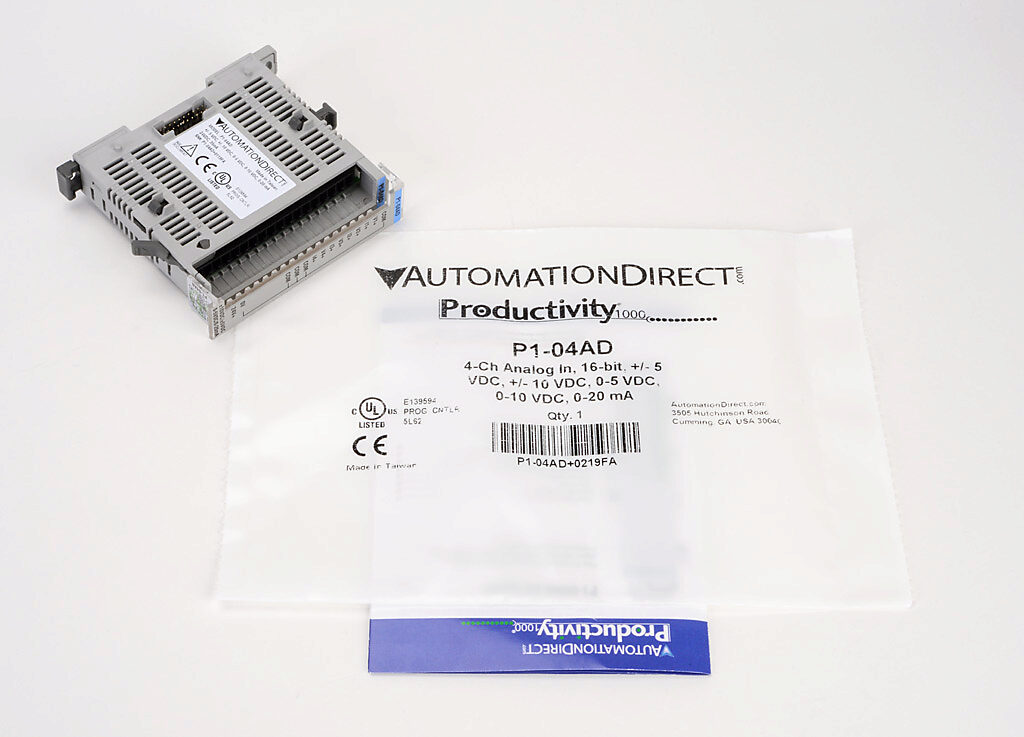

4 Channel analog input module for Productivity1000
Up to 15 I/O modules can be connected to a Productivity1000 CPU module to expand the system to a maximum of 240 I/O points.
P1-04AD specifics:
- 4 Analog inputs (current/voltage)
Specifications
- Quantity per product
- 1
- Short Description
4 channel analog input, current/voltage, 16-bit resolution
- Specifications
P1-04AD specifics:
- 4 Analog inputs (current/voltage)
Specifications of the P1-04AD module:
- 4 Analog inputs
- Range: 0-20 mA, 0-5 VDC, 0-10 VDC, +/- 5 VDC, +/- 10 VDC
- 16-bit resolution
- Designed to operate with 24 VDC user supplied power
Note:
We recommend using prewired ZIPLink cables and connection modules.
If you wish to handwire your module, removable terminal blocks (P2-RTB or P2-RTB-1) are sold separately.
| Title | Download | |
|---|---|---|
| pdf Datasheet P1-04AD | Download (pdf, 2.73 MB) | |
| pdf User Manual Productivity1000 (1st Ed. Rev. D) | Download (pdf, 52.13 MB) | |
| pdf ZIPLink Wiring system for P1000 PLCs | Download (pdf, 366 KB) |
