Product information

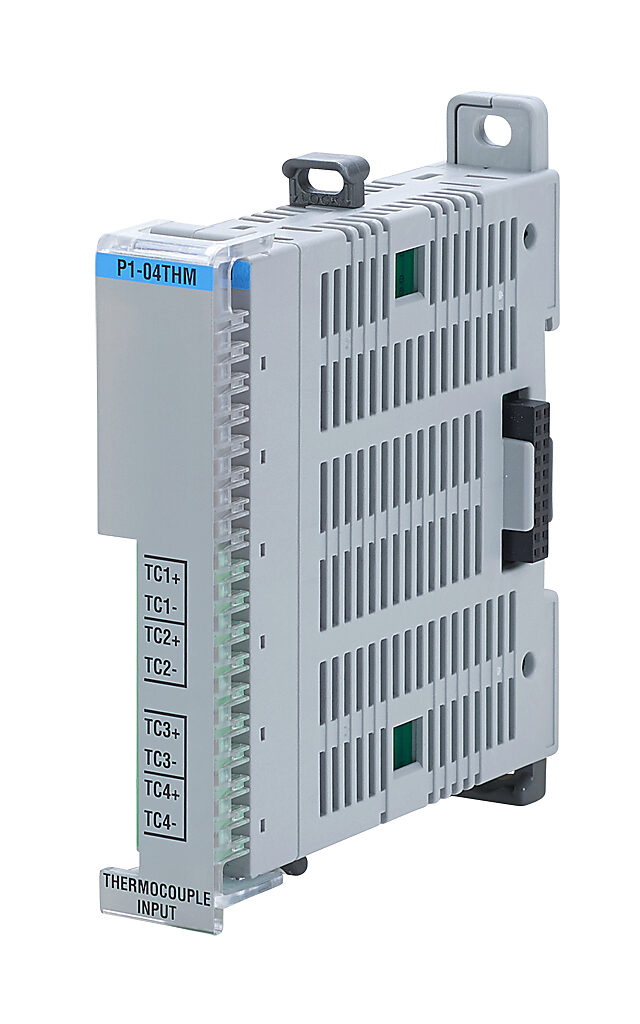

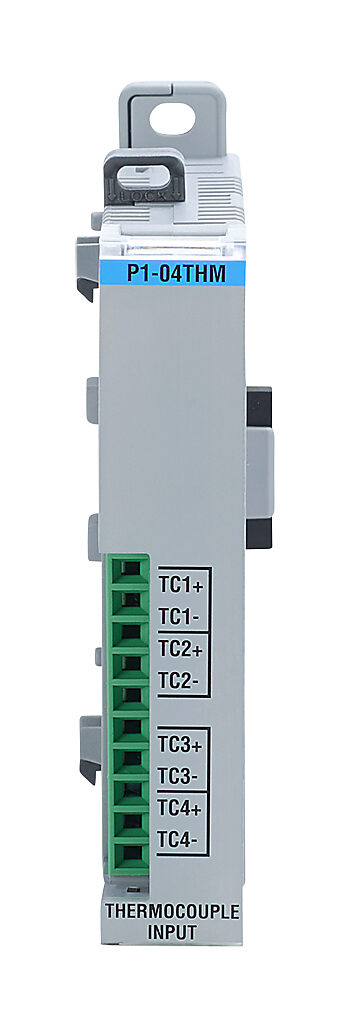

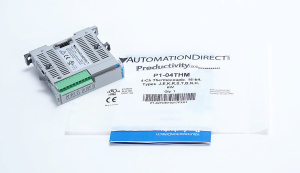

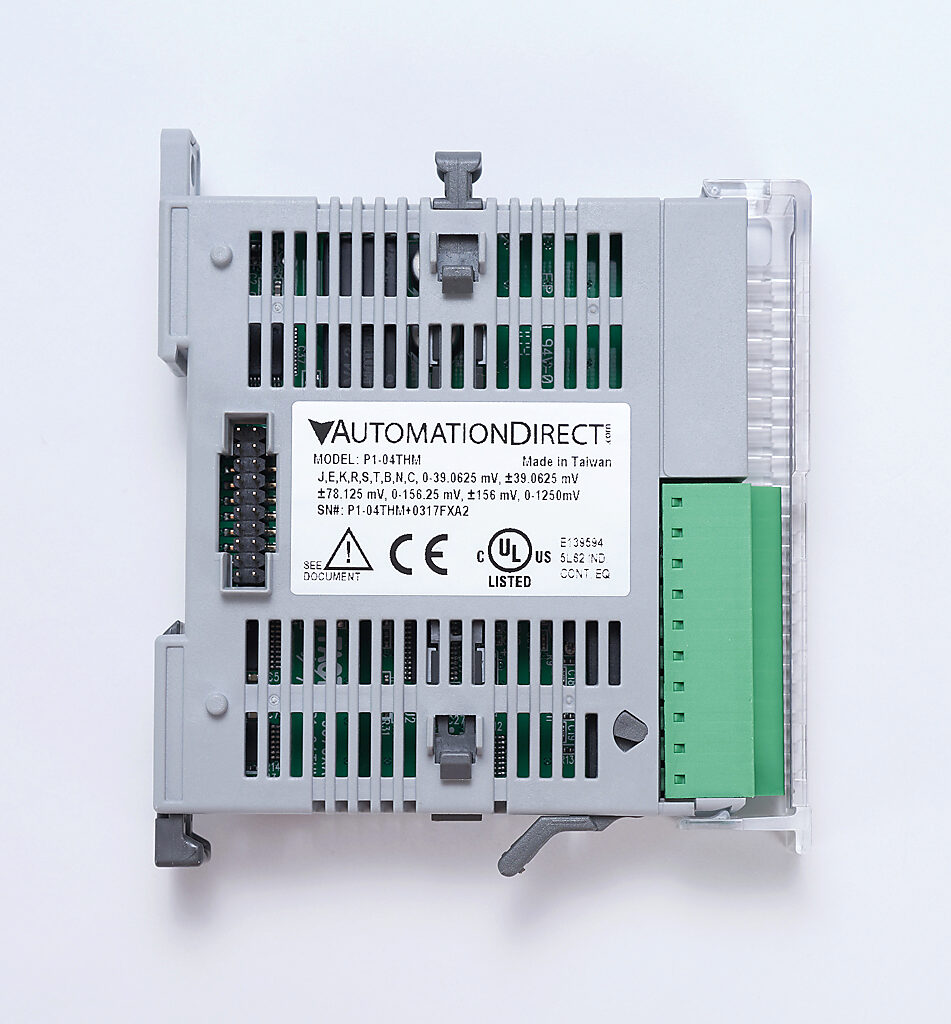

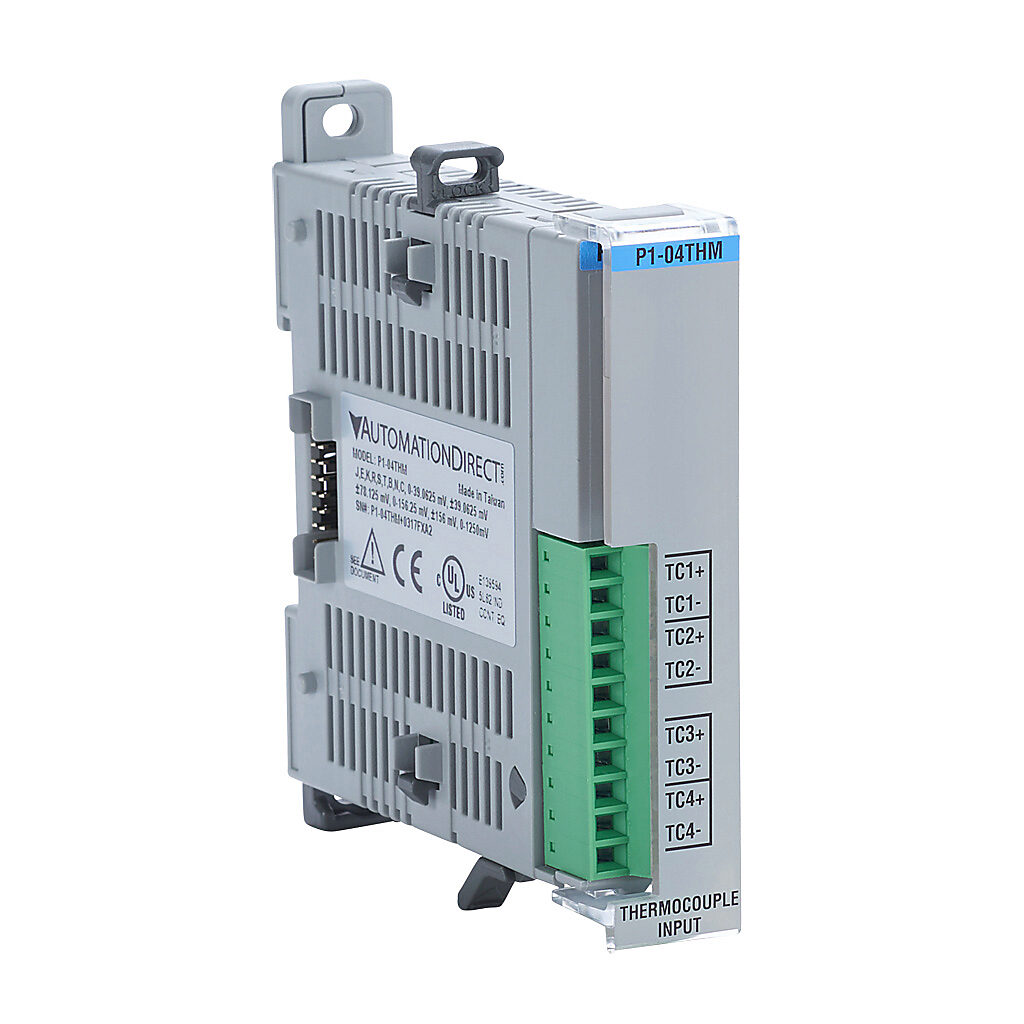

4 Channel thermocouple/mV input module for Productivity1000
Up to 16 I/O modules can be connected to a Productivity1000 CPU module to expand the system to a maximum of 240 I/O points.
P1-04THM specifics:
- 4 Analog inputs (thermocouple / mV)
- 16-bit resolution
Specifications
- Quantity per product
- 1
- Short Description
4 channel thermocouple / mV input, 16-bit resolution, 0.1° Celsius or Fahrenheit accuracy
- Specifications
Specifications of the P1-04THM module:
- 4 Thermocouple / mV inputs
- Accuracy: ±0.1° Celsius or Fahrenheit
- 16-bit resolution
- Supports thermocouples: J, E, K, R, S, T, B, N, C
- Voltage input: 0-39.0625mV, +/-39.0625mV, +/-78.125mV, 0-156mV, +/-156mV, 0-1.25V
- P1-10RTB screw terminal block included
Note:
This module is not compatible with ZipLink.
| Title | Download | |
|---|---|---|
| pdf Datasheet P1-04THM | Download (pdf, 2.35 MB) | |
| pdf User Manual Productivity1000 (1st Ed. Rev. D) | Download (pdf, 52.13 MB) | |
| pdf ZIPLink Wiring system for P1000 PLCs | Download (pdf, 366 KB) |
