Product information

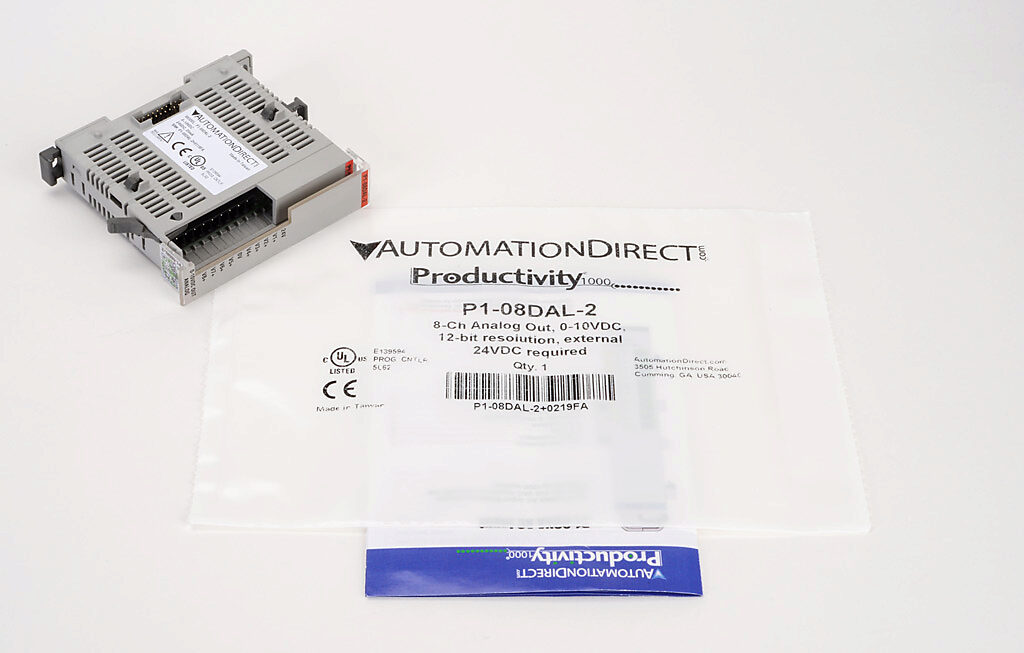

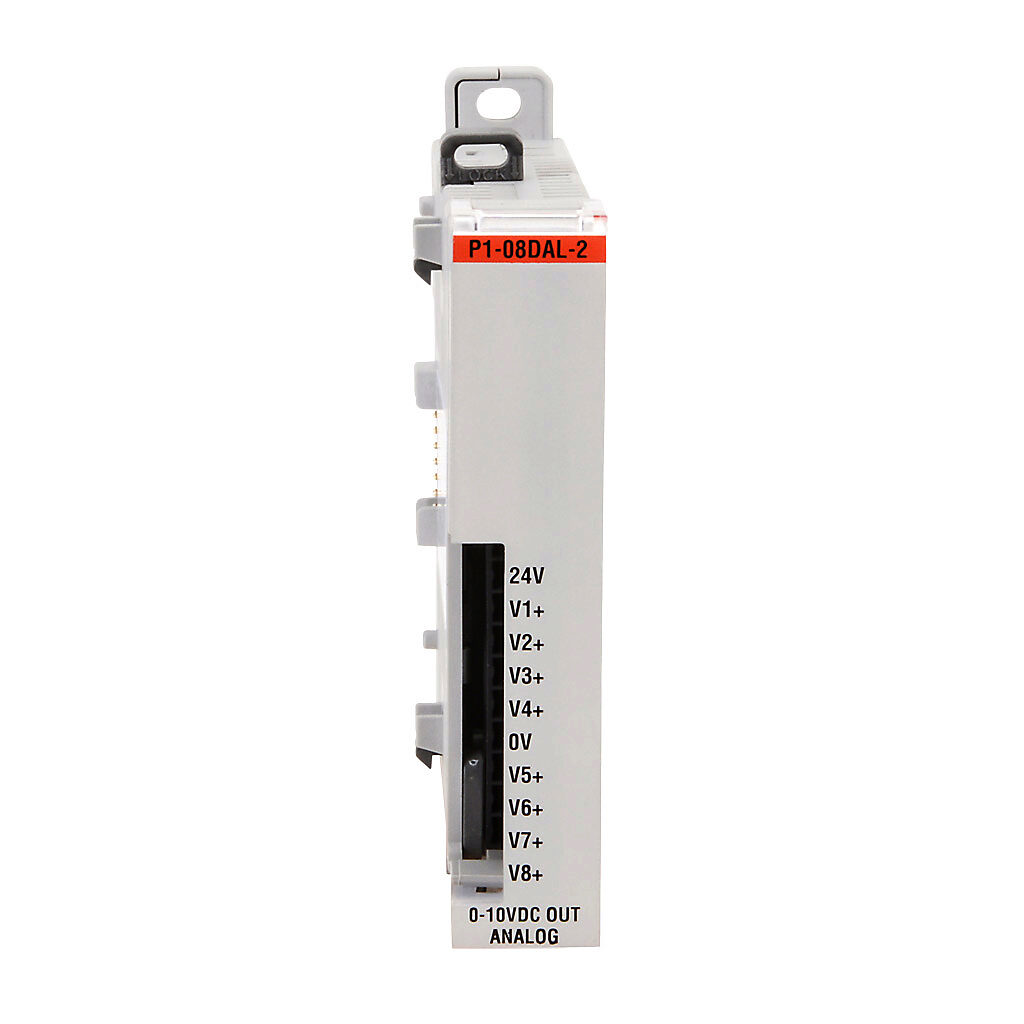

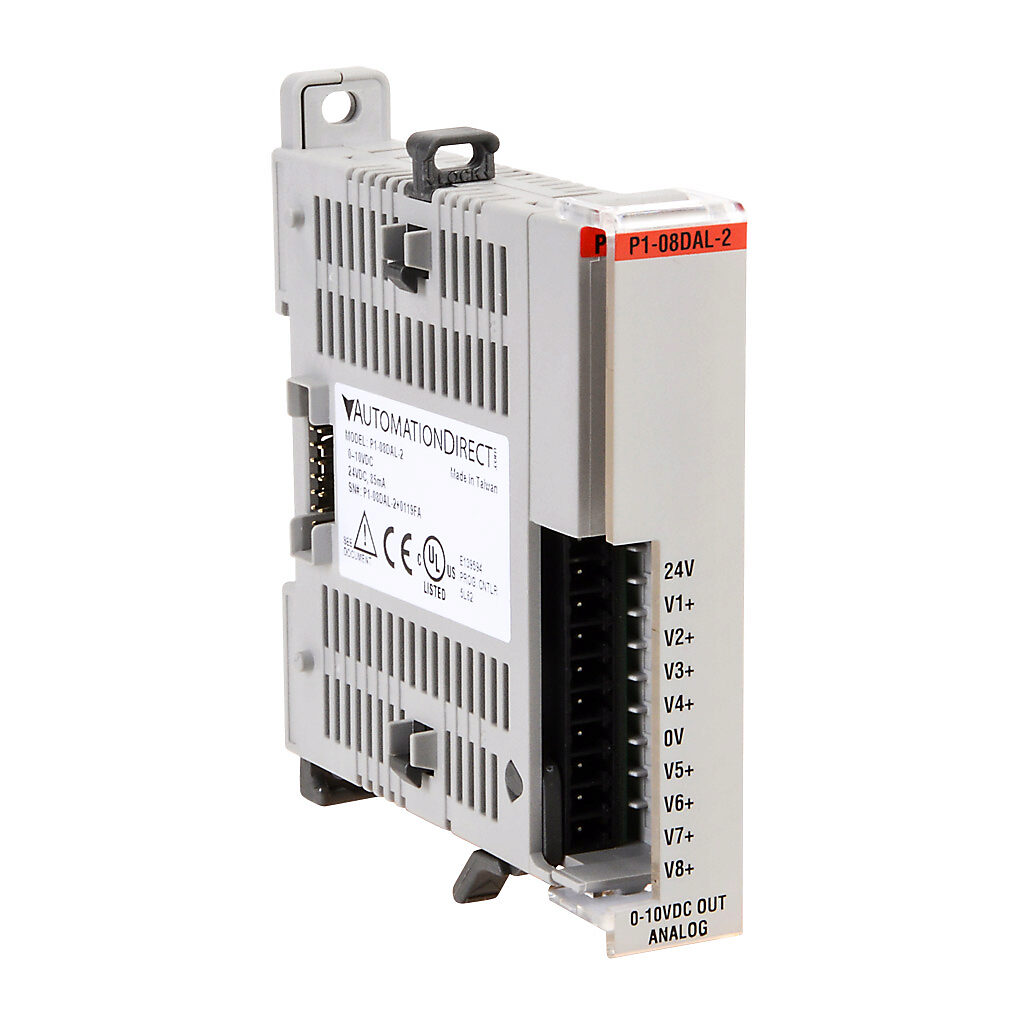

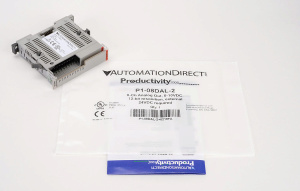

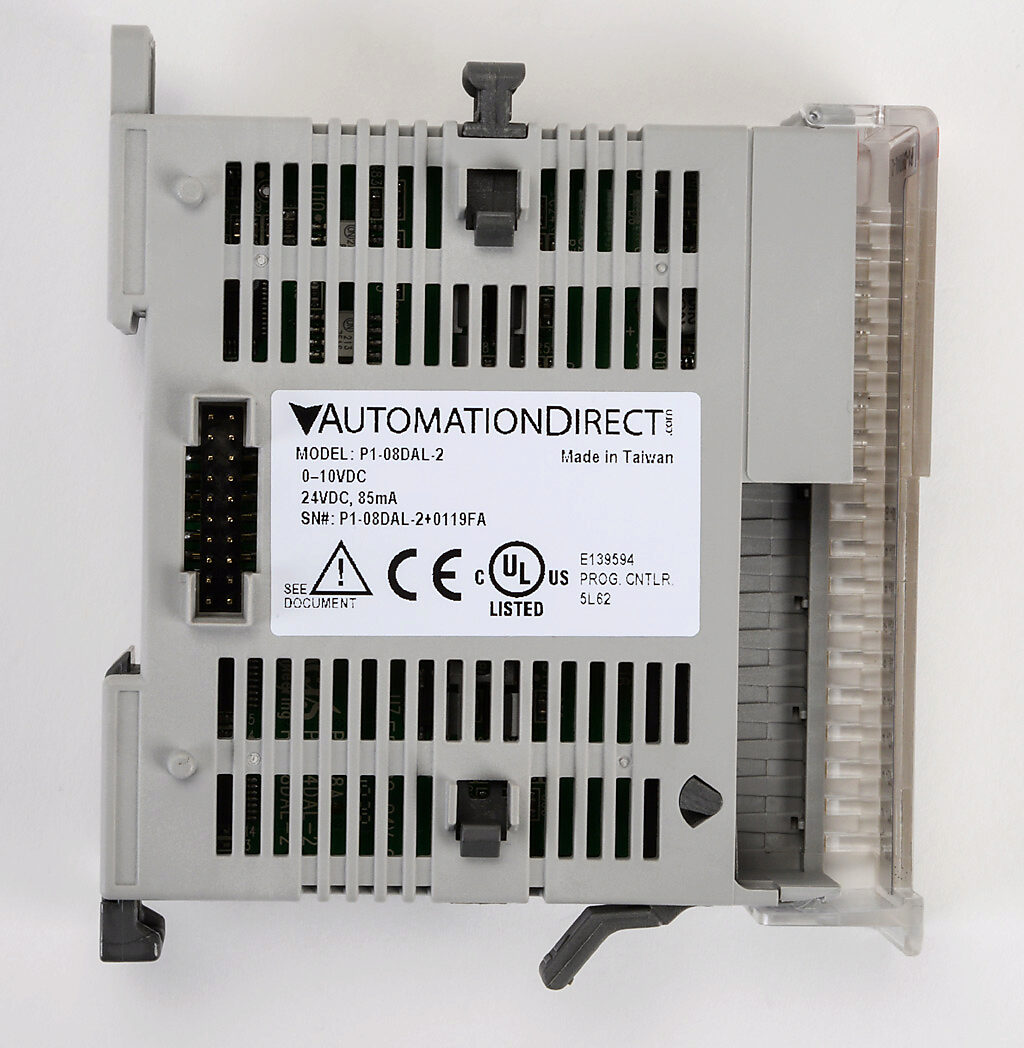

8 Channel analog output module for Productivity1000
Up to 15 I/O modules can be connected to a Productivity1000 CPU module to expand the system to a maximum of 240 I/O points.
P1-08DAL-2 specifics:
- 8 Analog outputs (voltage)
Specifications
- Quantity per product
- 1
- Short Description
8 channel analog output, voltage, 12-bit resolution
- Specifications
Specifications of the P1-08DAL-2 module:
- 8 Analog outputs
- Range: 0-10 VDC
- 12-bit resolution
- Designed to operate with 24 VDC user supplied power
Note:
We recommend using prewired ZIPLink cables and connection modules.
If you wish to handwire your module, removable terminal blocks (P1-10RTB or P1-10RTB-1) are sold separately.
| Title | Download | |
|---|---|---|
| pdf Datasheet P1-08DAL-2 | Download (pdf, 2.64 MB) | |
| pdf User Manual Productivity1000 (1st Ed. Rev. D) | Download (pdf, 52.13 MB) | |
| pdf ZIPLink Wiring system for P1000 PLCs | Download (pdf, 366 KB) |
