Product information

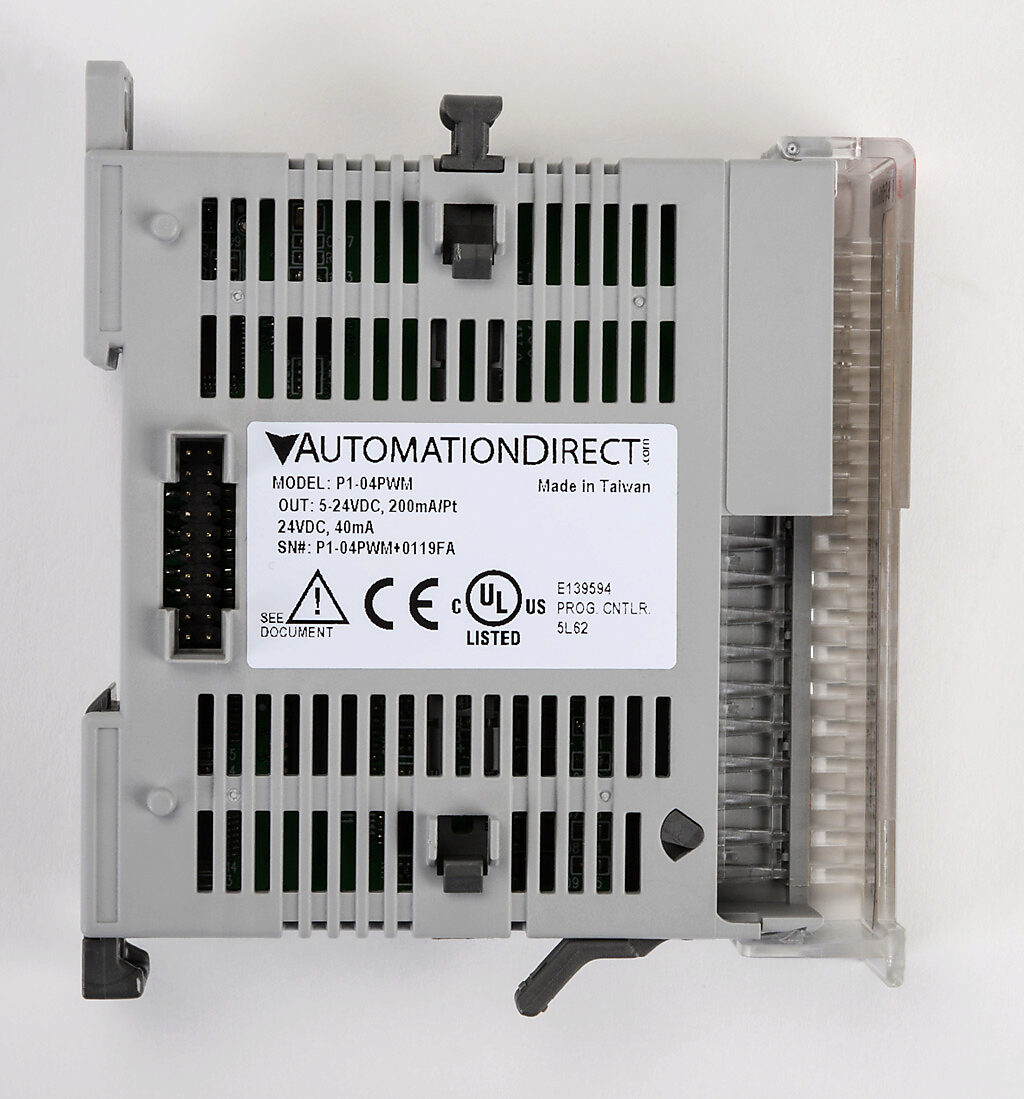

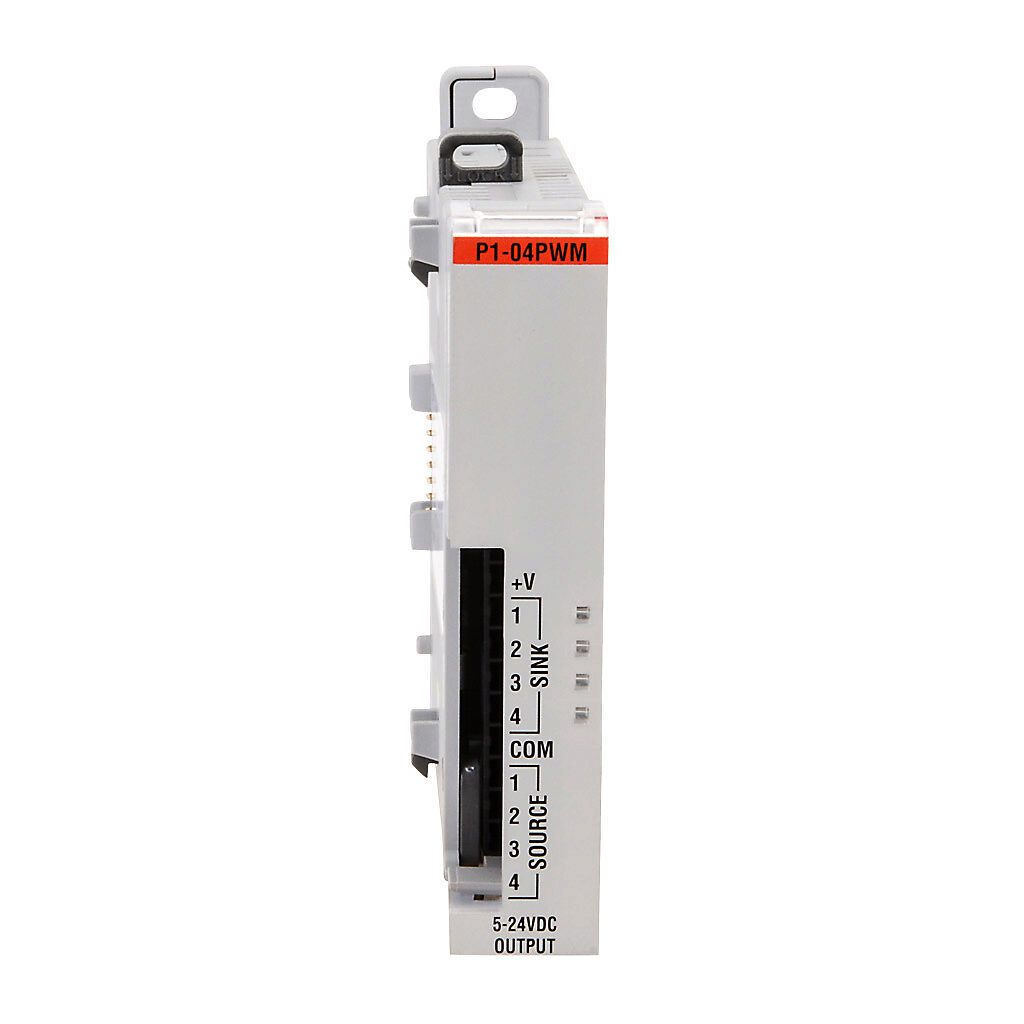

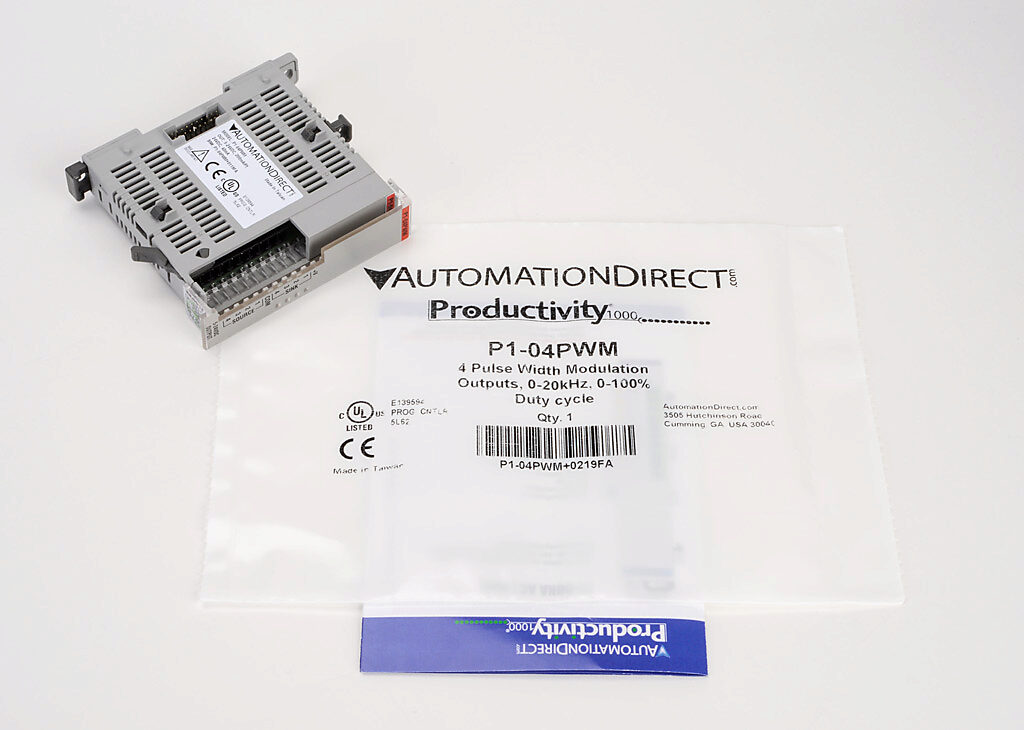

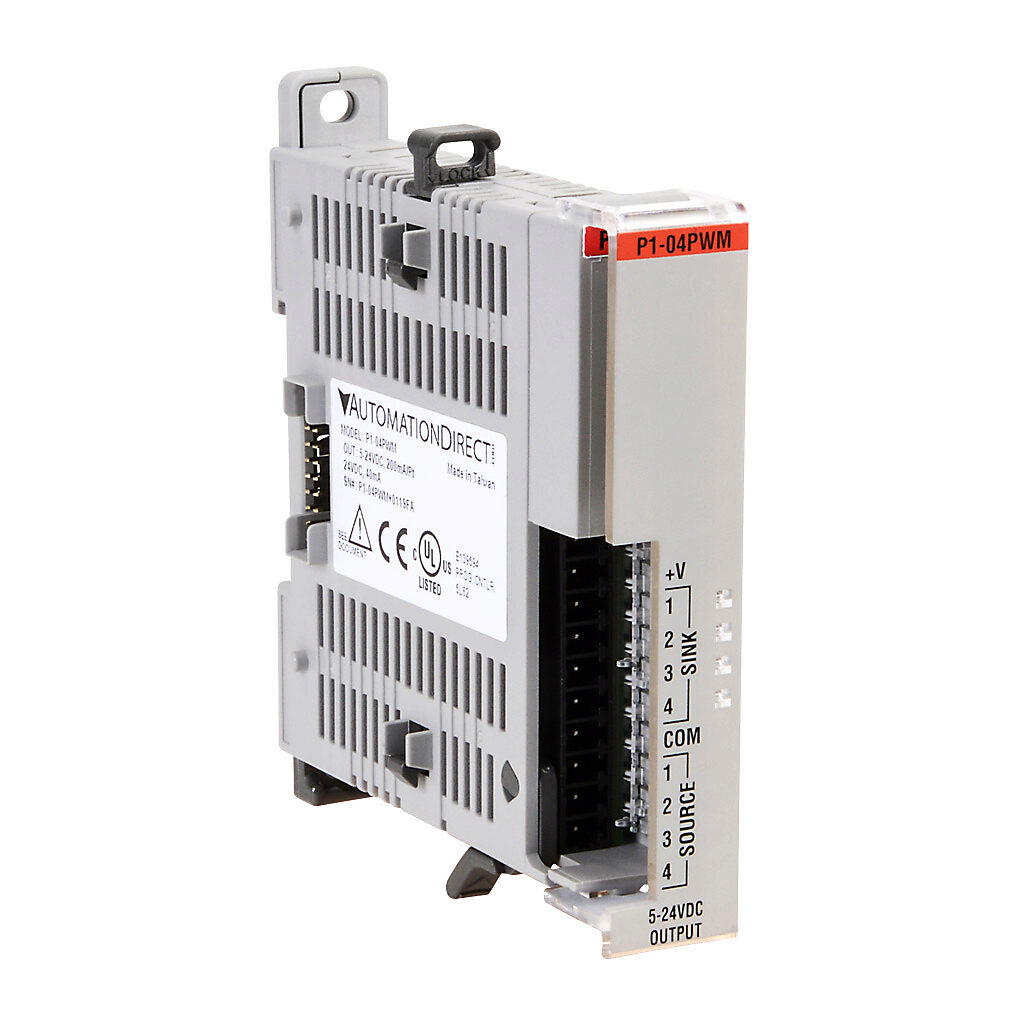

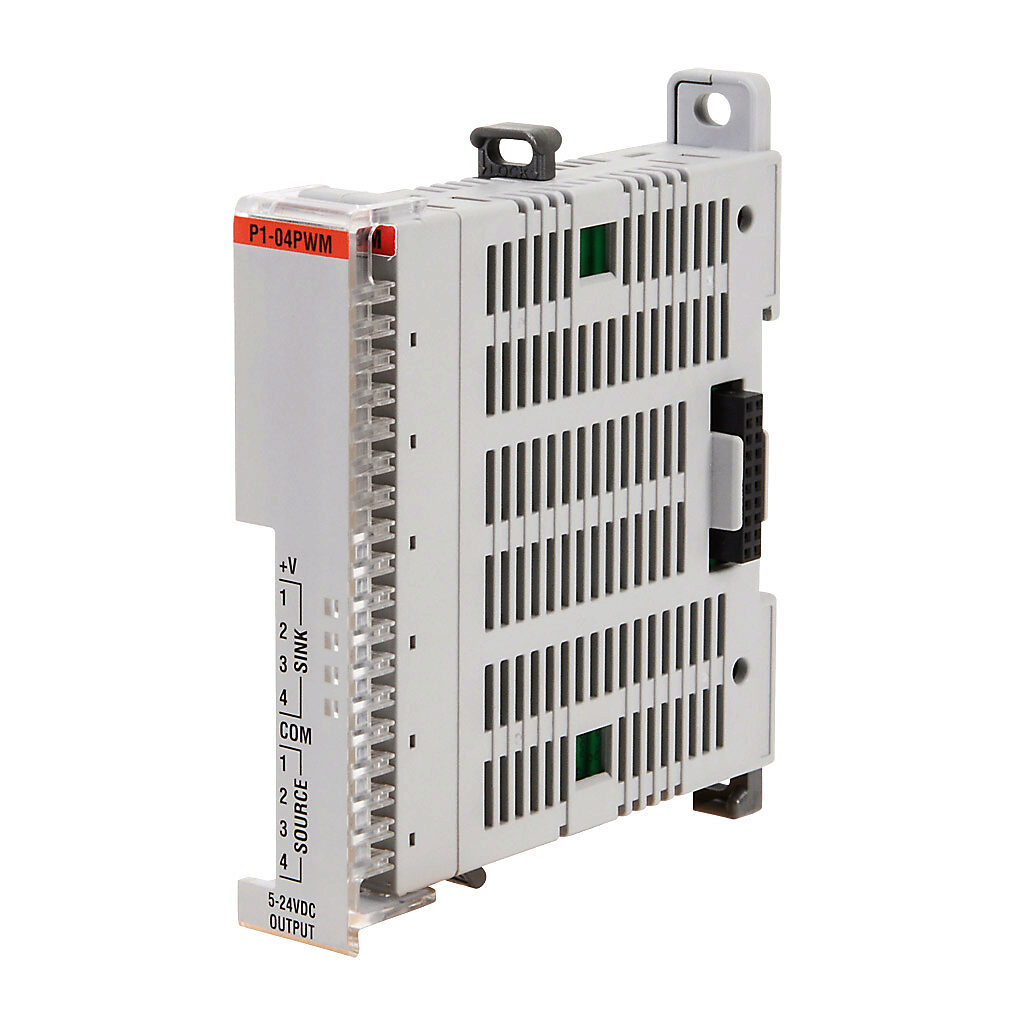

High-speed pulse width modulation output module for Productivity1000
Up to 15 I/O modules can be connected to a Productivity1000 CPU module to expand the system to a maximum of 240 I/O points.
P1-04PWM specifics:
- High-speed pulse width modulation output
- Switching Frequency: 100 kHz
- Number of Output Channels: 4
Specifications
- Quantity per product
- 1
- Short Description
High-speed pulse width modulation output
- Specifications
Specifications of the P1-04PWM module:
- Module Type: High-speed pulse width modulation
- Number of Output Points: 8
- Number of Output Channels: 4
- Nominal Output Voltage: 5-24 VDC
- Discrete Output Type: NPN/PNP
- Load Current: 0.2A/point, 0.1A/point when NPN/PNP shared
Note:
External Power Requirement: 5-24 VDC
Requires P1-10RTB or P1-10RTB-1 removable terminal block or ZIPLink pre-wired cables
| Title | Download | |
|---|---|---|
| pdf Datasheet P1-04PWM | Download (pdf, 2.97 MB) | |
| pdf User Manual Productivity1000 (1st Ed. Rev. D) | Download (pdf, 52.13 MB) | |
| pdf ZIPLink Wiring system for P1000 PLCs | Download (pdf, 366 KB) |
