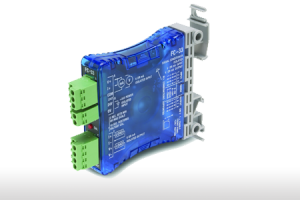

FC-33

Configurable isolated signal conditioner

The FC-33, field configurable isolated input/output signal conditioner, is useful in eliminating ground loops and interfacing sensors to PLC analog input modules. The FC-33 has 3-way isolation; this feature solves many types of configuration problems. For example, the signal conditioner can be configured for a sinking input and a sourcing output. It also allows signal translation from current input to voltage output or voltage input to current output.

The FC-33 is a DIN-rail or side-mount, selectable input/output signal conditioner with isolation between input and output, and isolation between 24-volt power and input/output.

The field configurable input/output types allow a wide ranging capability for 0-5V, 0-10V, 0-20mA and 4-20mA signals. The FC-33 has built-in self-calibration, but also has OFFSET (zero) and SPAN (full scale) adjustments of  the output signal. The OFFSET has an adjustment range of 0 to 25% of full scale input and the SPAN has an adjustment of 80% to 102%.

Level LED: The LED is a powerful tool when setting up the signal conditioner. During normal operation the LED will blink at a proportional rate to the selected input signal level. When performing field calibration the LED is used for indication of the internal calibration process.

CAL-P Pushbutton: This pushbutton, along with various switch settings, allows you to calibrate the OFFSET and/or SPAN for your application or to restore factory default calibration.
