Product information

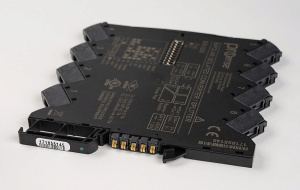

Isolated narrow width bipolar voltage/current signal conditioner
ProSense SC6 Series signal conditioners are housed in a narrow 6mm width package that allows high density mounting on a 35mm DIN rail to optimize panel space.
Models are available for conversion of standard DC voltage and current signals, bipolar signals, thermocouples, and RTDs. Isolation eliminates ground loop problems.
The SC6 Series includes single channel, two channel and signal splitter models.
DIP switch configuration provides flexibility to meet a variety of applications.
All models are UL Listed as well as FM approved for use in Class 1 Division 2 hazardous locations.
Features of the SC6-3220:
- Isolated signal conditioner
- Bipolar voltage/current input
- 2 Voltage/current outputs
Specifications
- Quantity per product
- 1
- Short Description
Isolated narrow width signal conditioner, bipolar voltage/current input, 2 voltage/current outputs, 24VDC powered
- Specifications
Specifications of the SC6-3220 signal conditioner:
- DIN rail mount
- Input range:
- +/- 10 mA, +/- 20 mA, +/- 5 VDC, +/- 10 VDC
- Output 1 range:
- 0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC
- Output 2 range:
- 0-20 mA, 4-20 mA, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC
- DIP switch configurable
- 3000VAC isolation between input and outputs
- UL Listed; FM approved for use in Class 1 Division 2 hazardous locations
- Plastic housing
- Screw terminals
- 24 VDC Nominal operating voltage
| Title | Download | |
|---|---|---|
| pdf Datasheet ProSense SC6 Series Signal Conditioners | Download (pdf, 1.95 MB) | |
| pdf Manual ProSense SC6 Series Signal Conditioners | Download (pdf, 3.01 MB) | |
| pdf Quick Start Guide ProSense SC6 Series Signal Conditioners | Download (pdf, 1.80 MB) |
