MS4SA-AP-ADC

Price:
€ 64,00
each
Quantity per package: 1
MS4SA-AP-ADC

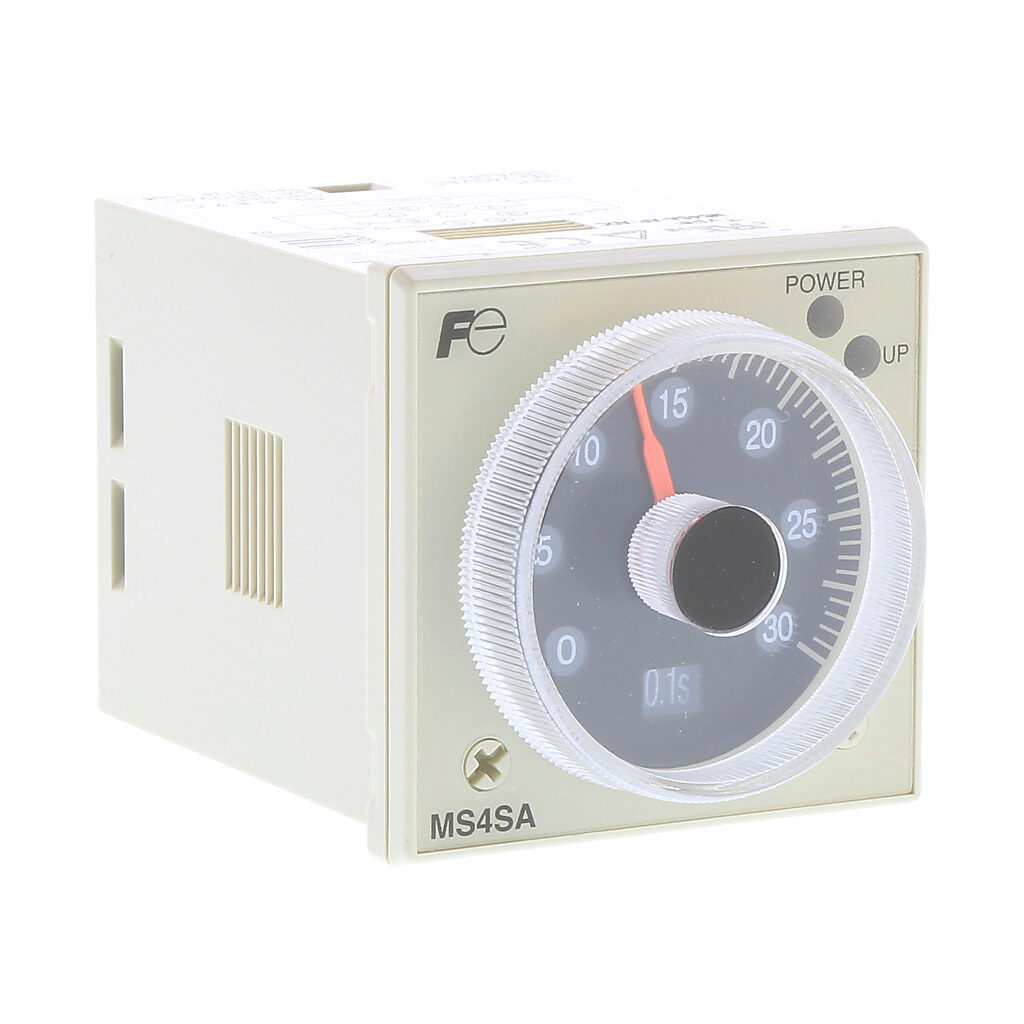

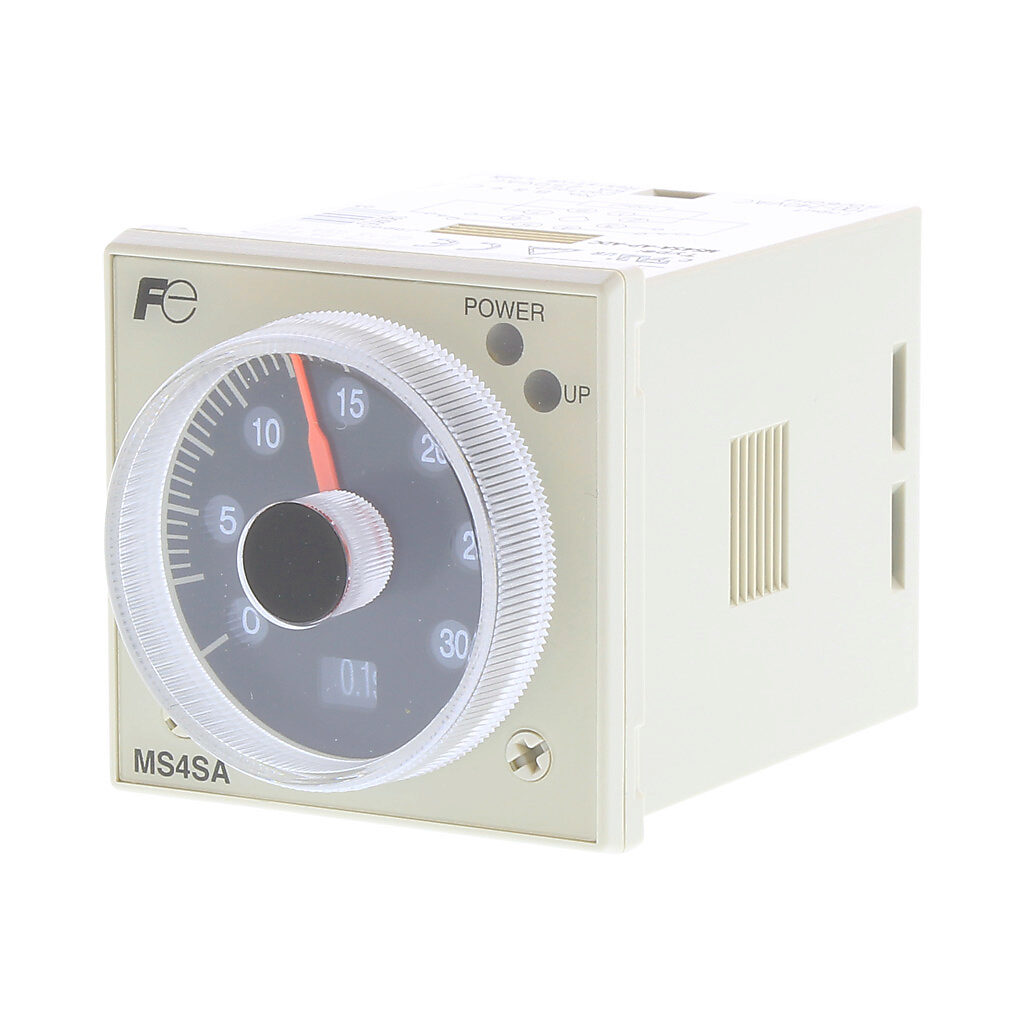

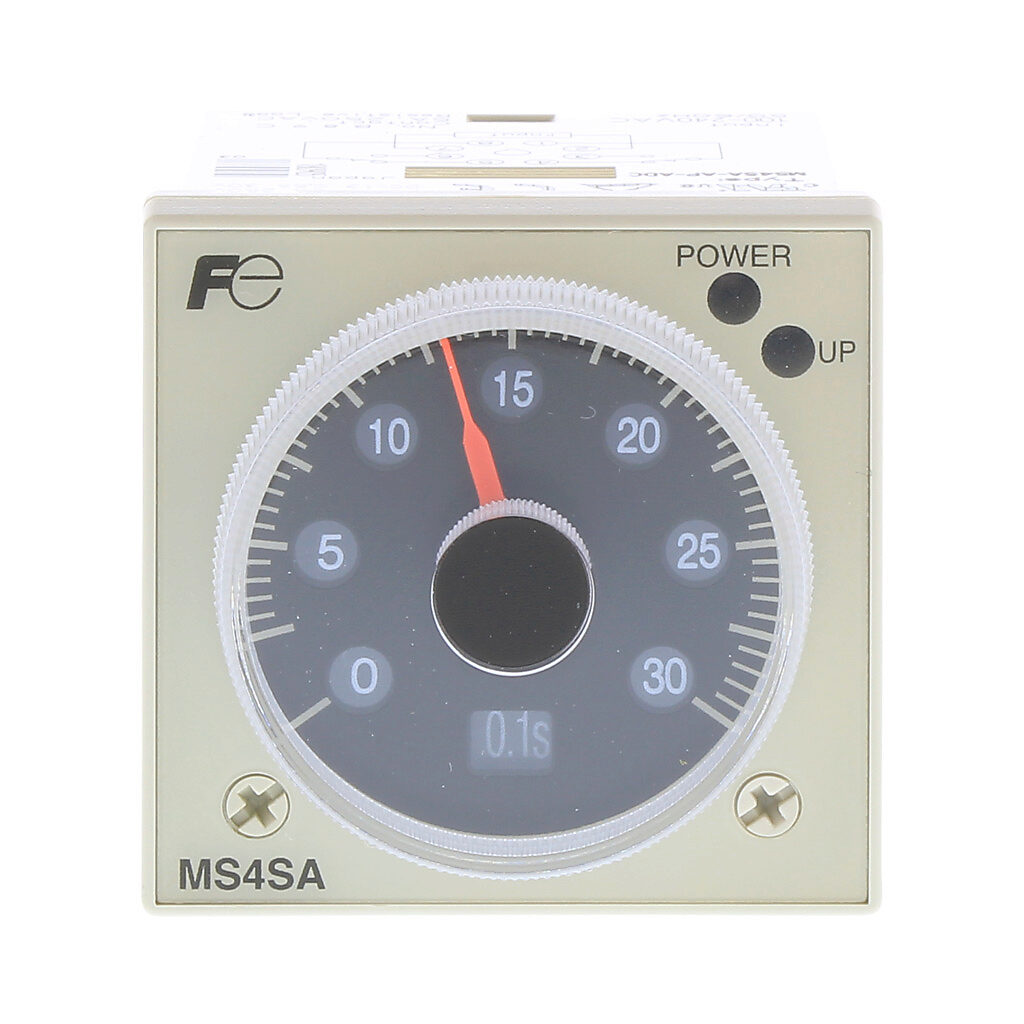

On-delay timer

The MS4S series super timers are 1/16 DIN style timing relays designed for process control, machine tool control, safety control and many other types of applications.

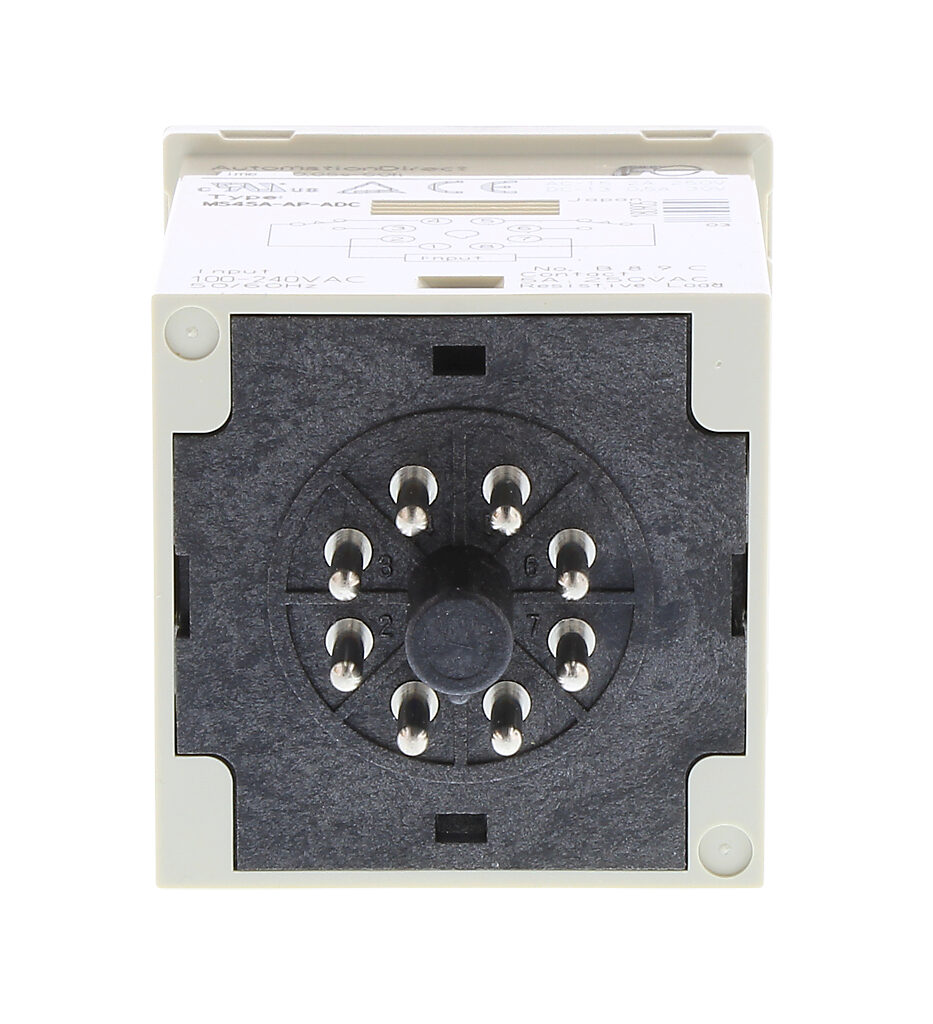

The timers are plug-in 8-pin or 11-pin surface/DIN-rail mountable with up to 4 selectable modes of operation and 4 selectable timing ranges.

Socket mounts not included (purchase separately).

For through-door mounting, purchase panel clips PANEL-16 separately.

Specifications

1

ON-delay timer, DPDT, 0.05s-60h

  • On-delay (PO)
  • Selectable timing range from 0.05 seconds to 60 hours
  • Timer scale with selectable ranges of 0-6, 0-12, 0-30 and 0-60
  • Timing units in selectable ranges of 0.1s, sec, min and hrs
  • LED indicators: Power on (green) flickers during timing operation UP (red) on when N.O. contact is closed
  • DPDT relay output
  • Operates on 100-240 VAC
doc955, doc958, doc961
