Product information

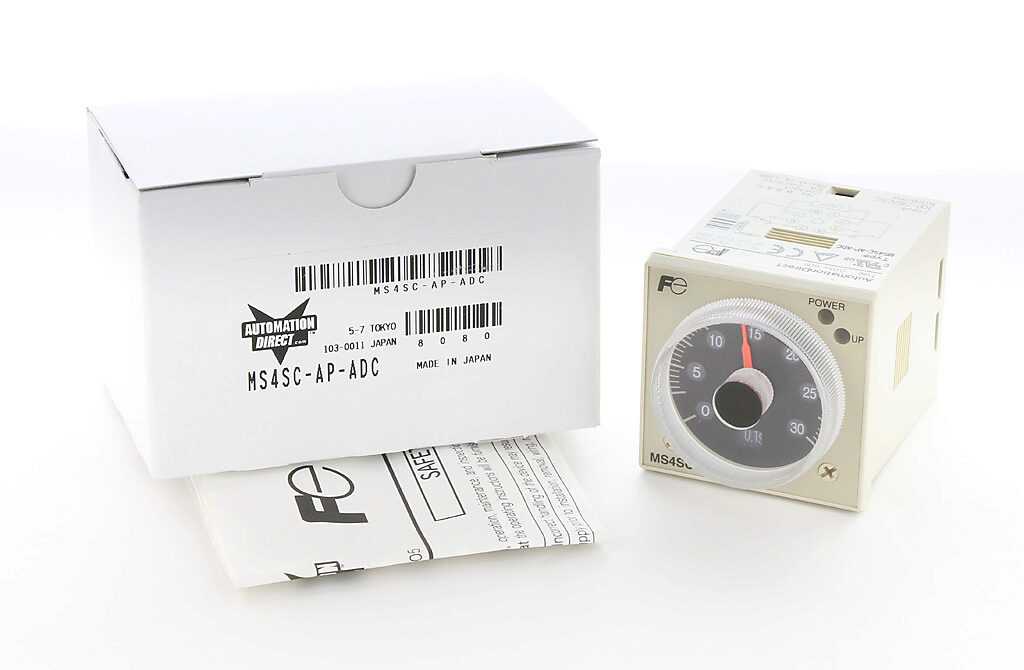

On-delay timer

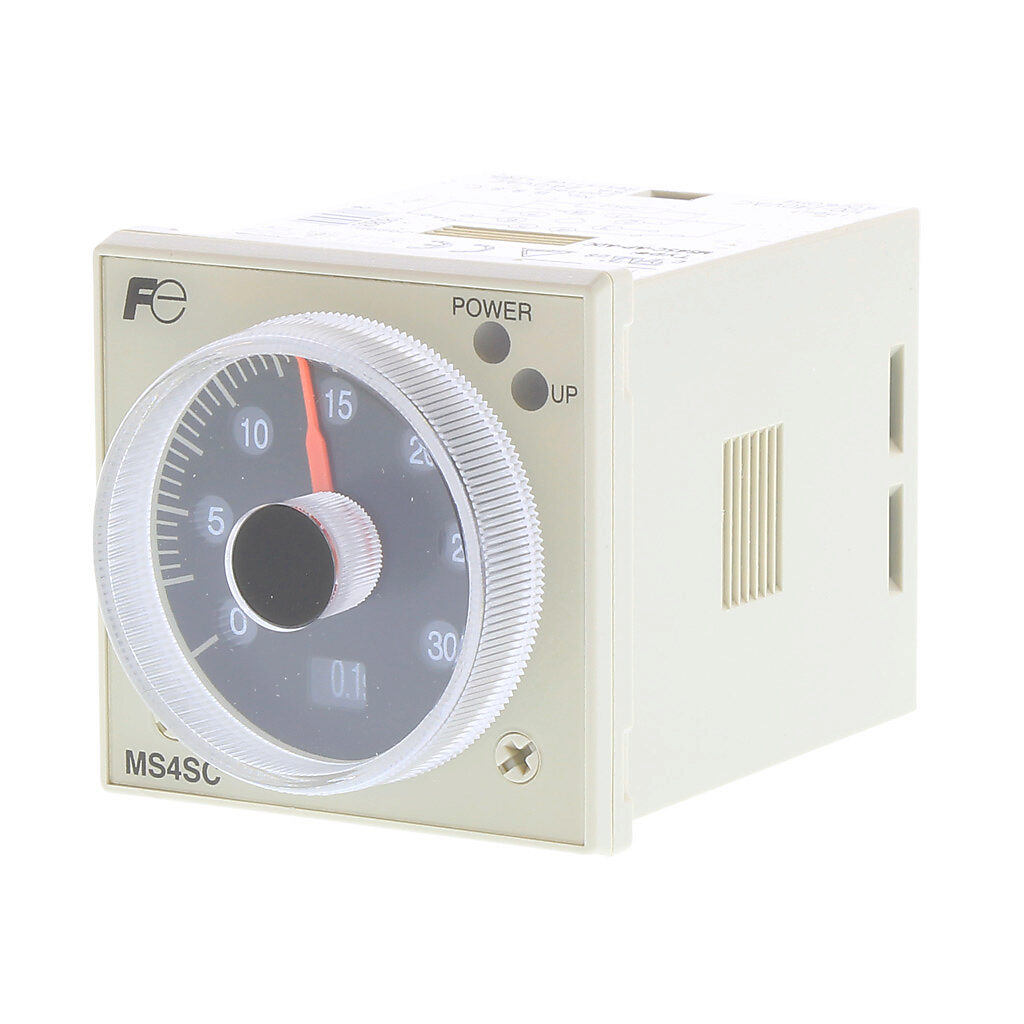

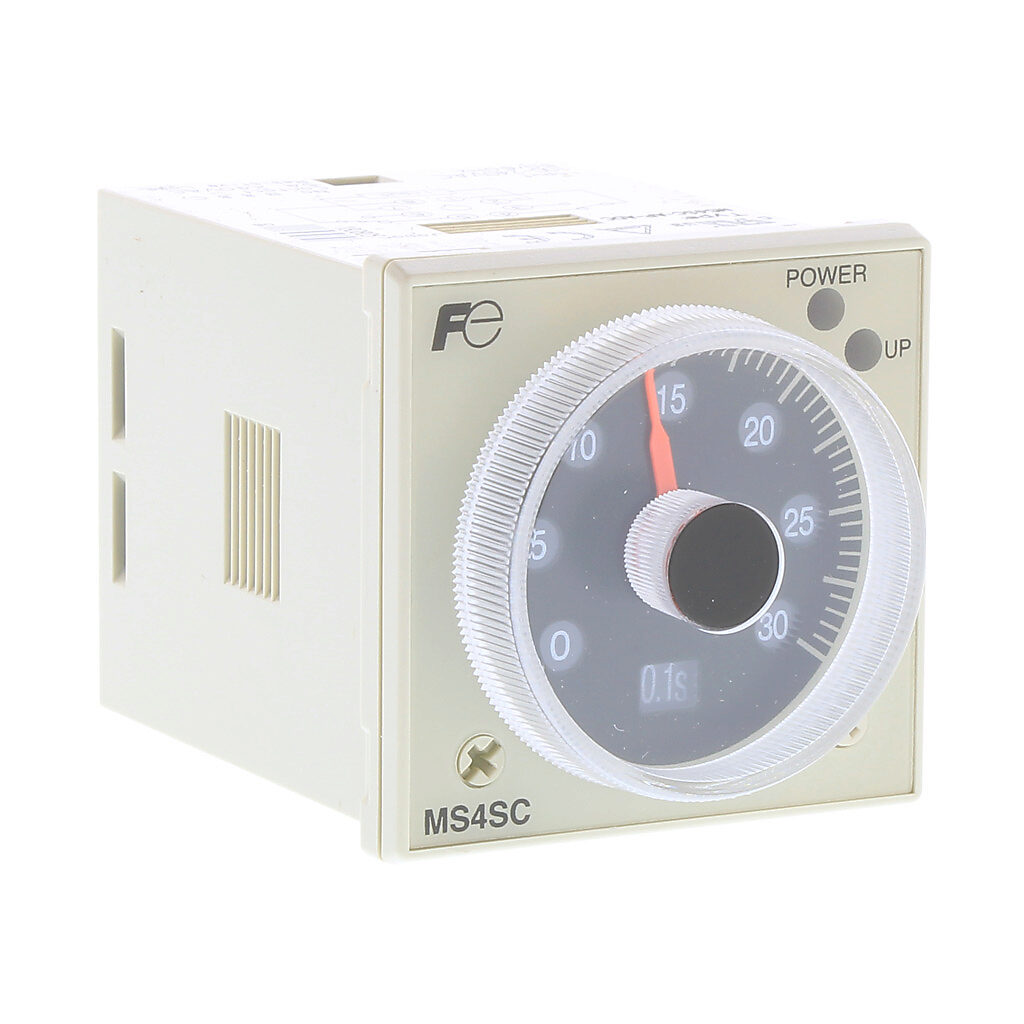

The MS4S series super timers are 1/16 DIN style timing relays designed for process control, machine tool control, safety control and many other types of applications.

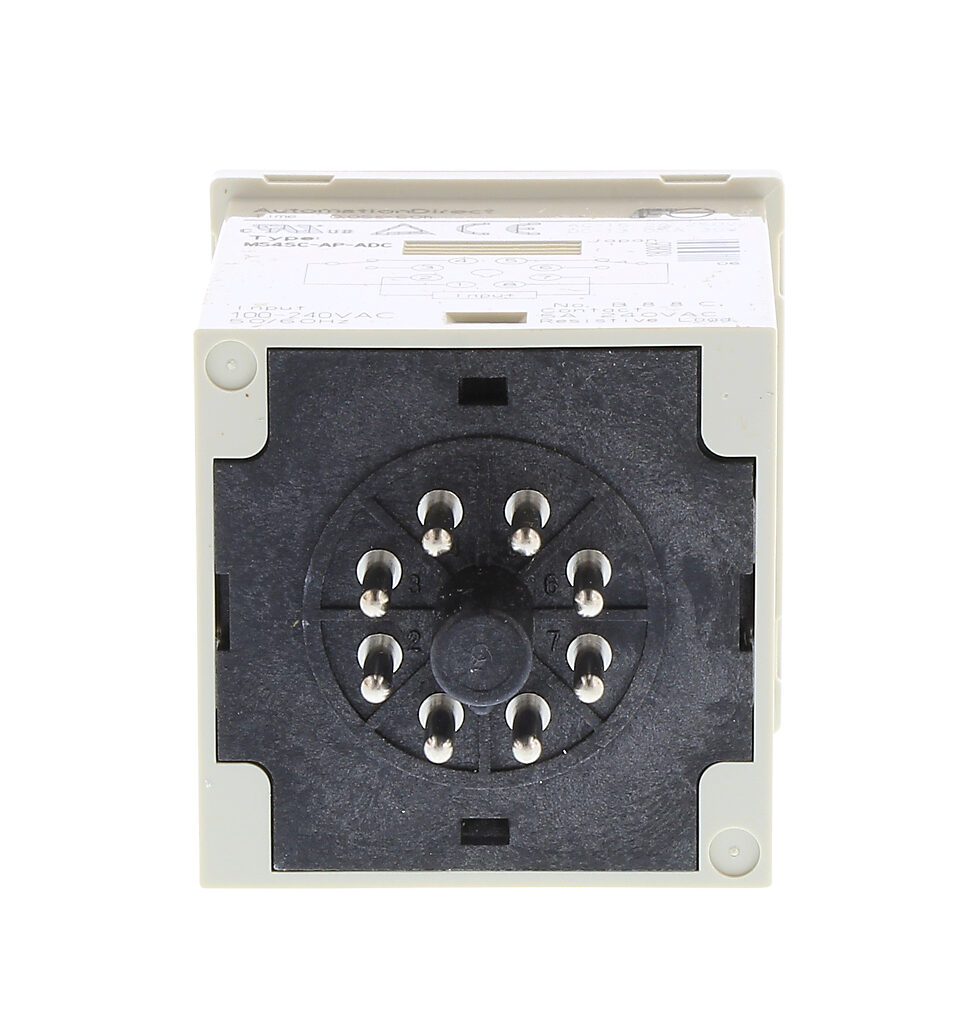

The timers are plug-in 8-pin or 11-pin surface/DIN-rail mountable with up to 4 selectable modes of operation and 4 selectable timing ranges.
Socket mounts not included (purchase separately).
For through-door mounting, purchase panel clips PANEL-16 separately.
Specifications
- Quantity per product
- 1
- Short Description
ON-delay timer, 2 x SDPDT, 0.05s-60h
- Specifications
- On-delay (PO)
- Selectable timing range from 0.05 seconds to 60 hours

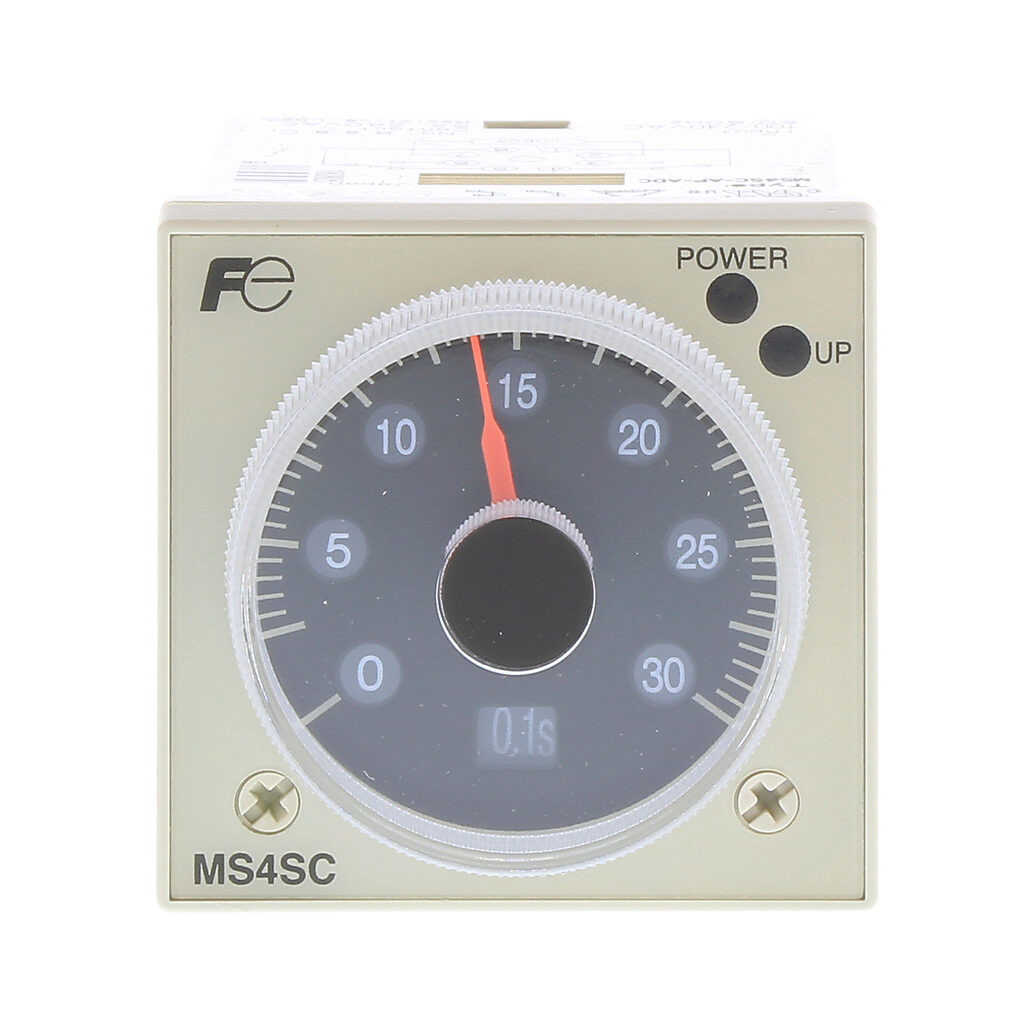

- Timer scale with selectable ranges of 0-6, 0-12, 0-30 and 0-60
- Timing units in selectable ranges of 0.1s, sec, min and hrs
- LED indicators: Power on (green) flickers during timing operation UP (red) on when N.O. contact is closed

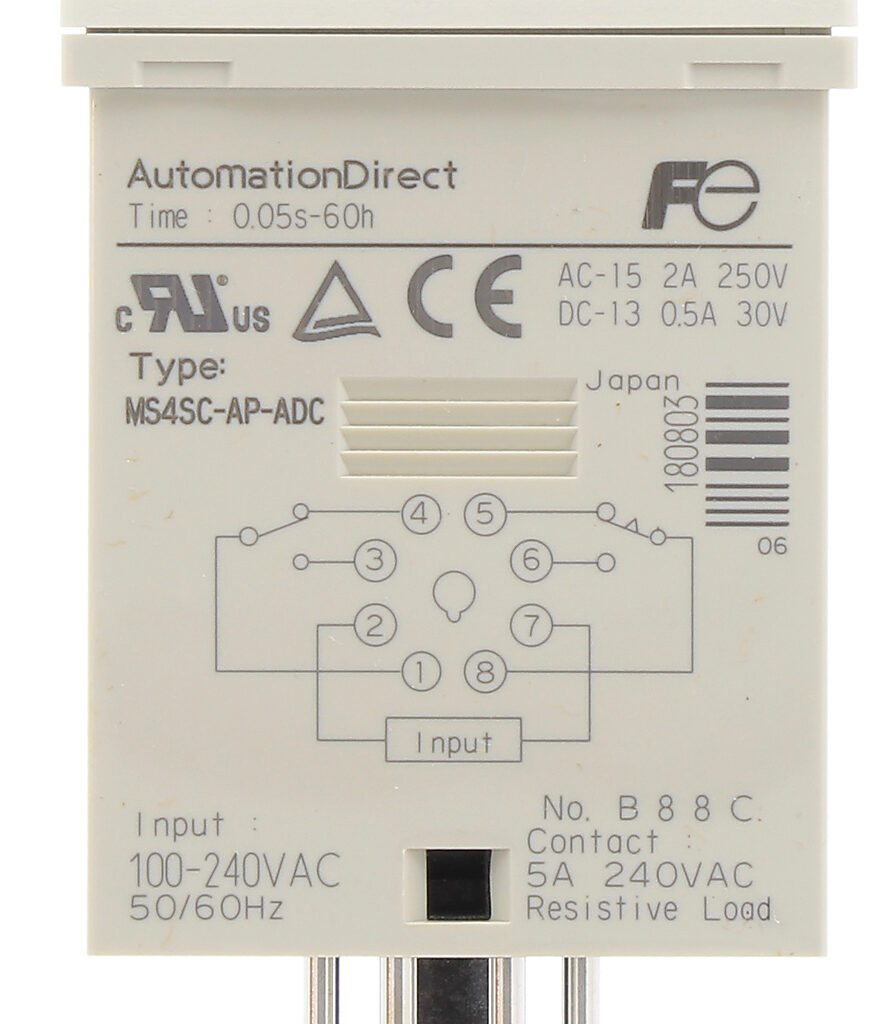

- SPDT timed contact output and a SPDT instantaneous contact output
- Operates on 100-240 VAC
| Title | Download | |
|---|---|---|
| Archive AutoCAD Drawings of Fuji Timers | Download (zip, 37 KB) | |
| pdf Data Sheet Fuji 1/16 DIN Timers | Download (pdf, 418 KB) | |
| pdf User Manual Fuji 1/16 DIN Timers | Download (pdf, 735 KB) |
