Product information

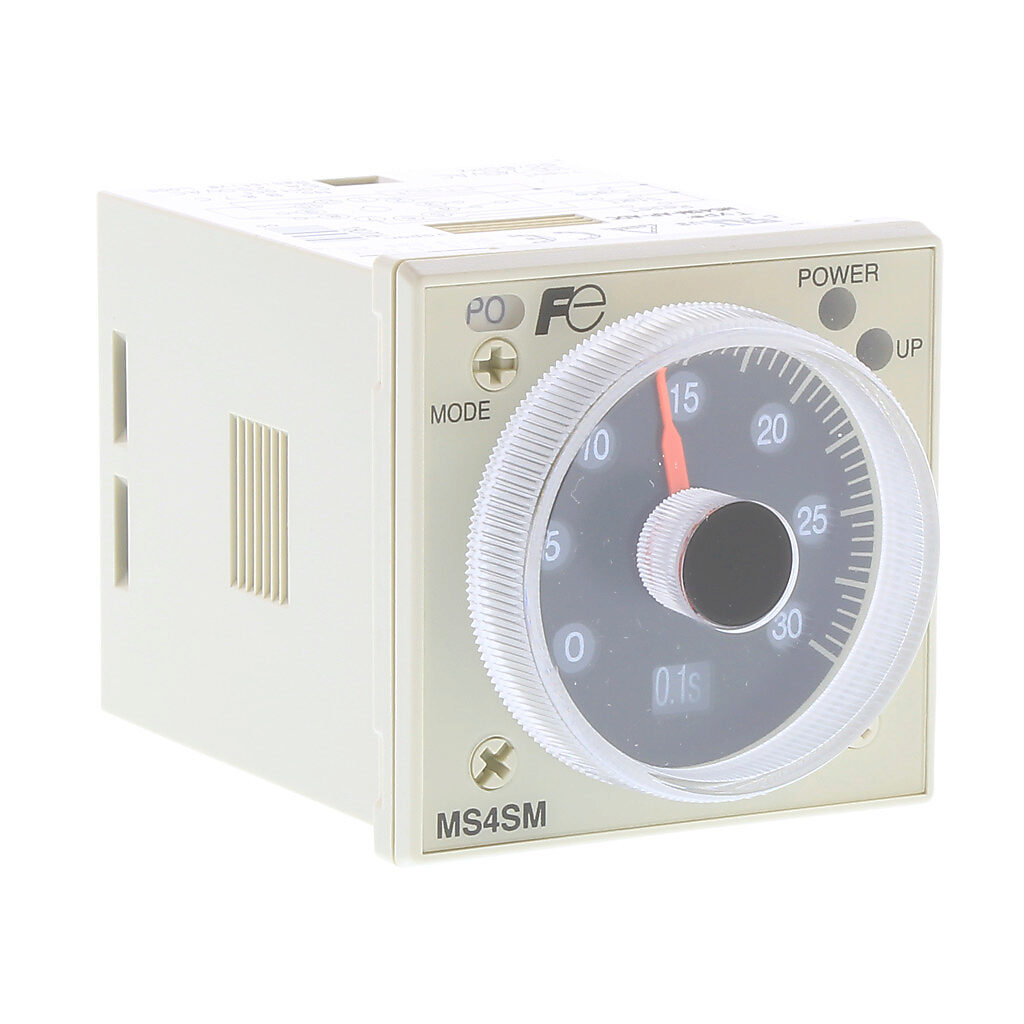

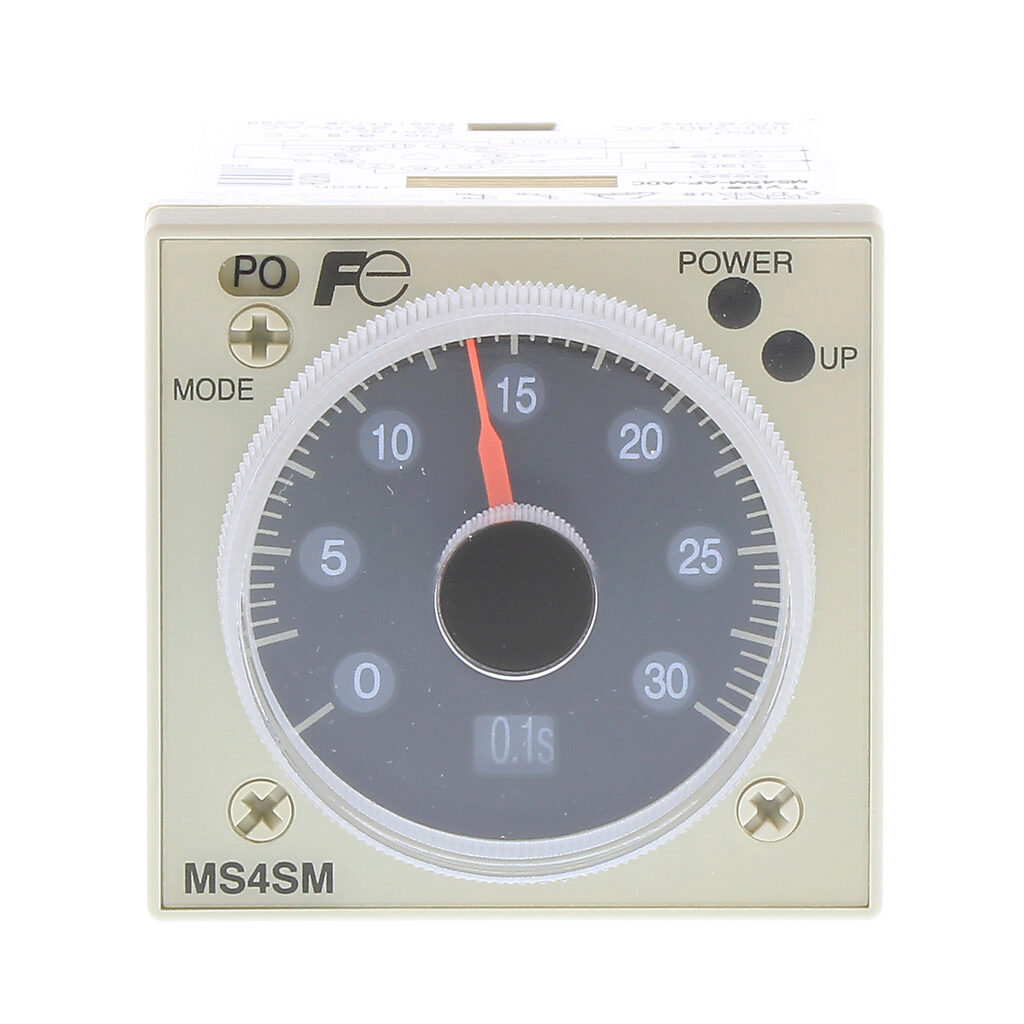

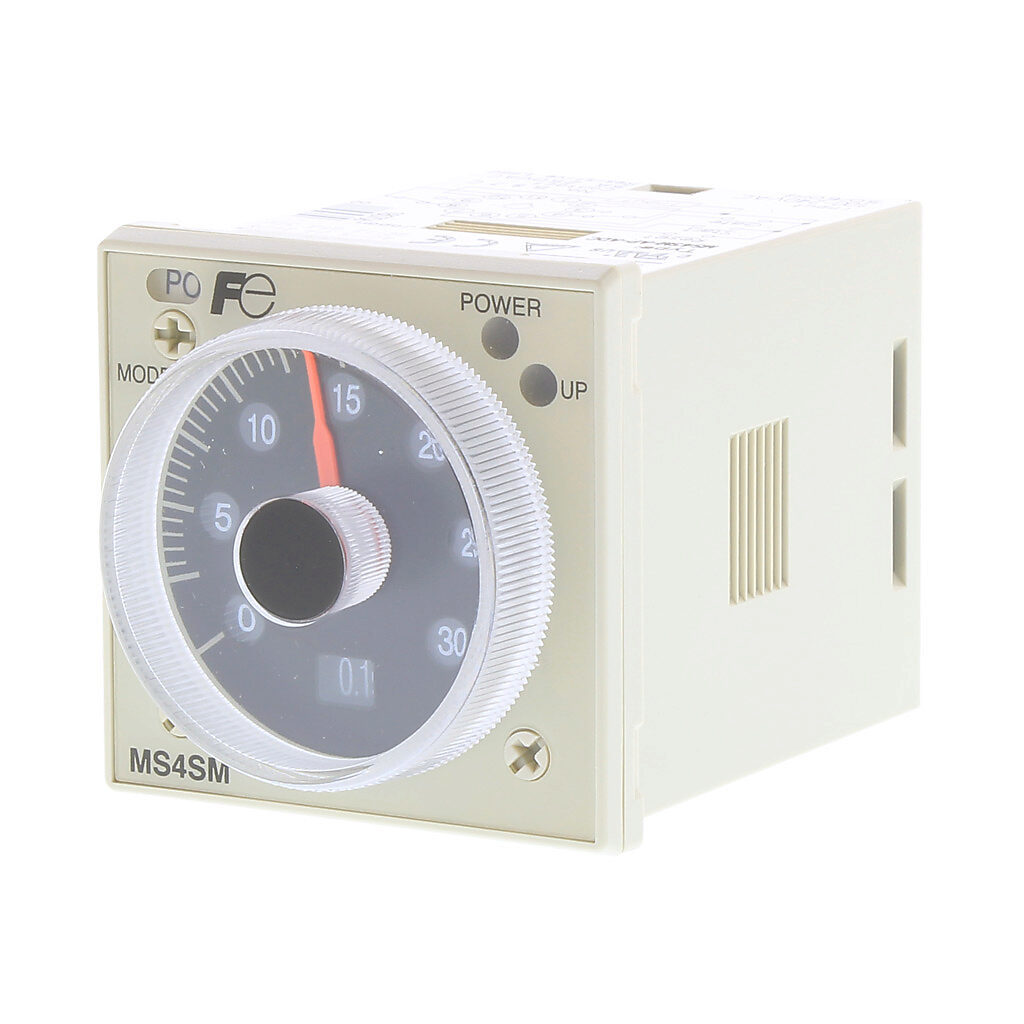

Multi-mode timer with mode indication
The MS4S series super timers are 1/16 DIN style timing relays designed for process control, machine tool control, safety control and many other types of applications.

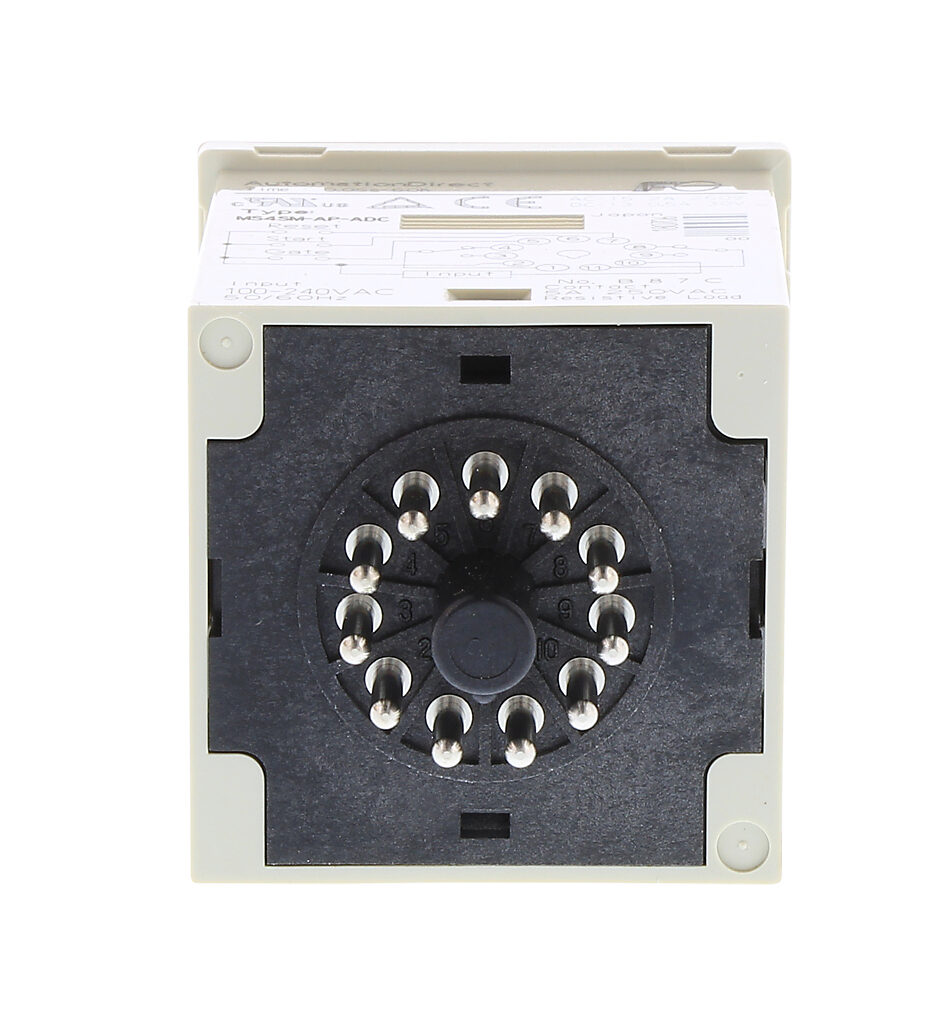

The timers are plug-in 8-pin or 11-pin surface/DIN-rail mountable with up to 4 selectable modes of operation and 4 selectable timing ranges.
Socket mounts not included (purchase separately).
For through-door mounting, purchase panel clips PANEL-16 separately.
Specifications
- Quantity per product
- 1
- Short Description
Multi-mode timer, DPDT, 0.05s-60h
- Specifications
- On-delay (PO), flicker (FL), one-shot (OS), or signal off-delay (SF)
- Selectable timing range from 0.05 seconds to 60 hours
- Timer scale with selectable ranges of 0-6, 0-12, 0-30 and 0-60
- Timing units in selectable ranges of 0.1s, sec, min and hrs
- LED indicators: Power on (green) flickers during timing operation UP (red) on when N.O. contact is closed
- DPDT relay output
- Operates on 100-240 VAC
| Title | Download | |
|---|---|---|
| Archive AutoCAD Drawings of Fuji Timers | Download (zip, 37 KB) | |
| pdf Data Sheet Fuji 1/16 DIN Timers | Download (pdf, 418 KB) | |
| pdf User Manual Fuji 1/16 DIN Timers | Download (pdf, 735 KB) |
Recommended Items
Recommended Items
| Image | Part number & description | Price | |
|---|---|---|---|
|
TP411X
Socket for MS4SM timers, DIN rail mount
|
Price: € 14,00 each | Add to cart More info |
|
TP411SBA
Socket for MS4SM timers, panel mount
|
Price: € 13,00 each | Add to cart More info |
|
PANEL-16
Mounting clips, package of 5. For use with 1/16 DIN timers and counters.
|
Price: € 22,00 each | Add to cart More info |
