Product information

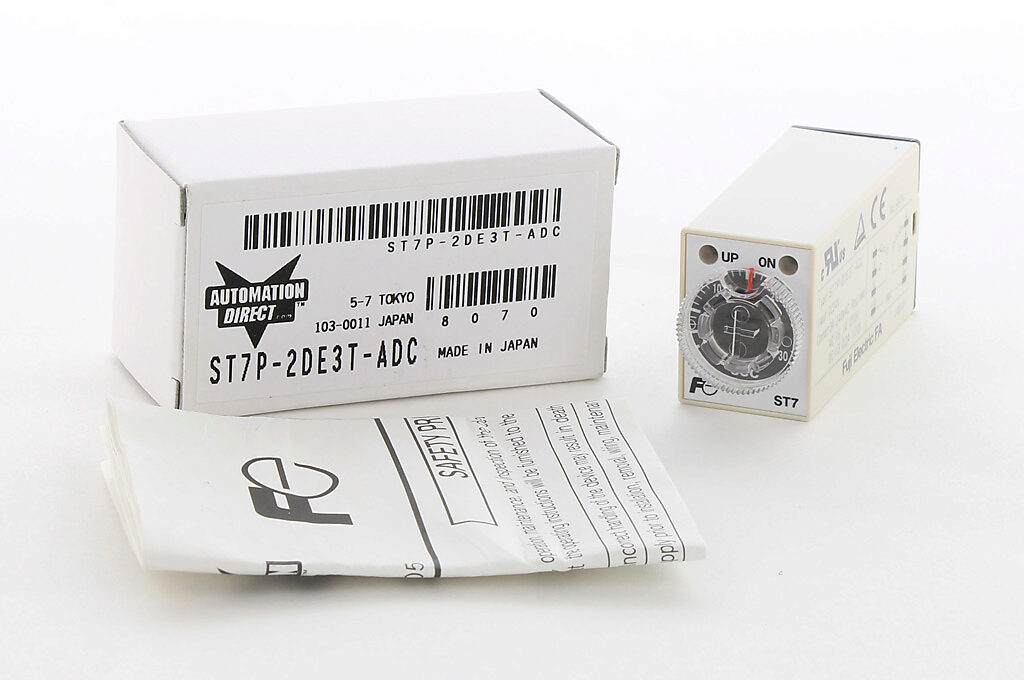

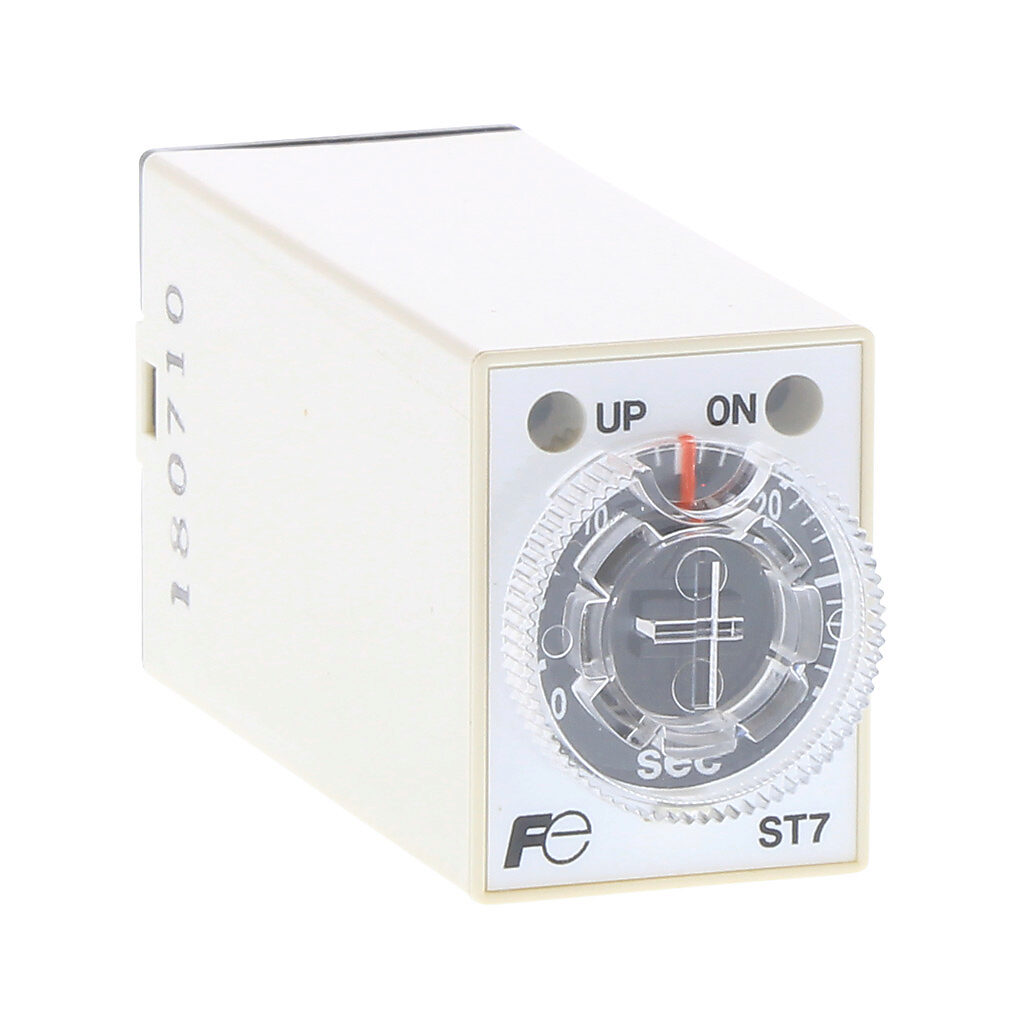

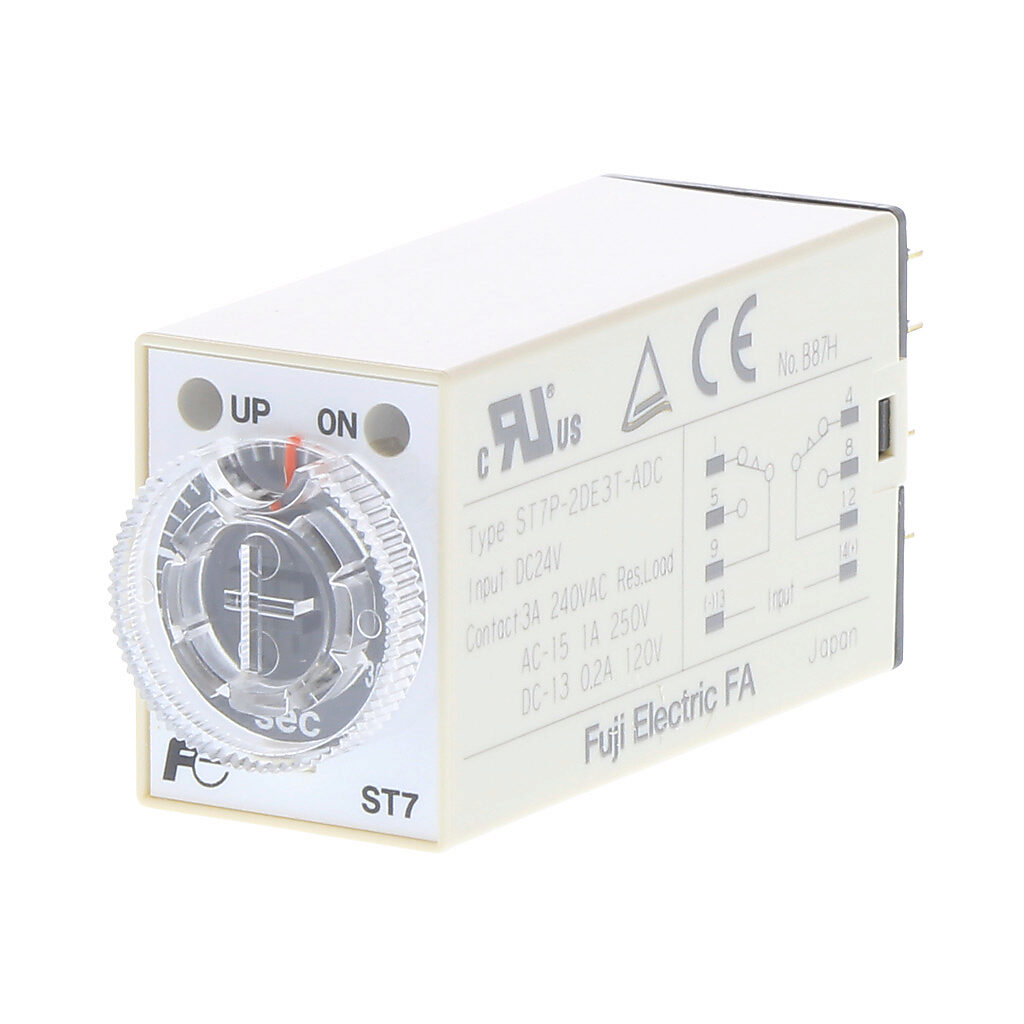

Mini-DIN ON-delay timer
The ST7P is a compact and highly accurate timer. It is an on-delay operation type with a single timing range.
These timers are designed to optimize mounting space in small areas. Mounting is by DIN rail or by securing directly to a panel with a fastener.
Specifications
- Quantity per product
- 1
- Short Description
ON-delay timer, DPDT, 2s-30s
- Specifications
- Timing range of 2 seconds to 30 seconds
- Highly accurate, with a repeat accuracy within ±1% at maximum setting time

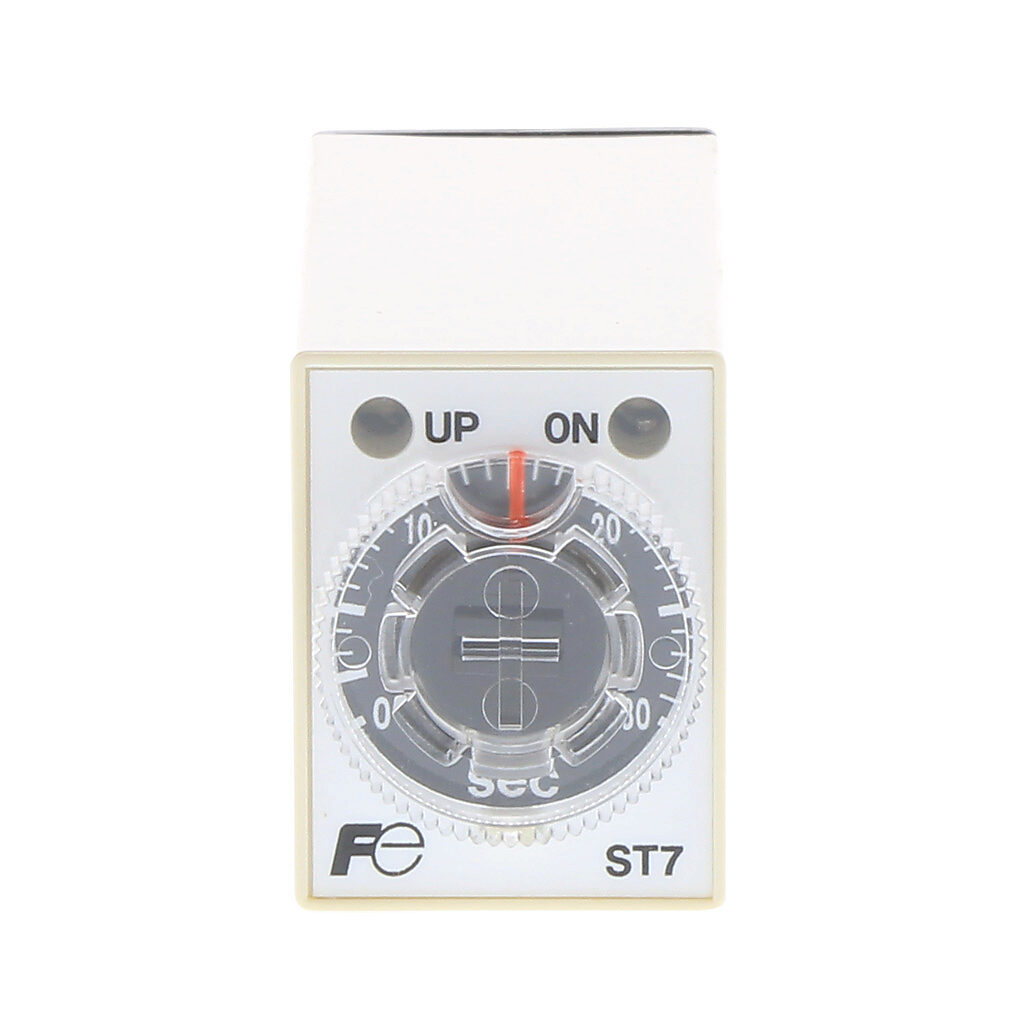

- Large dial makes time setting easy
- LED indicators make it easy to monitor timer operation
- DPDT relay output
- Operates on 24VDC
| Title | Download | |
|---|---|---|
| pdf Data Sheet Fuji Miniature DIN Timers | Download (pdf, 203 KB) | |
| pdf User Manual Fuji Miniature DIN Timers | Download (pdf, 424 KB) |
