Product information

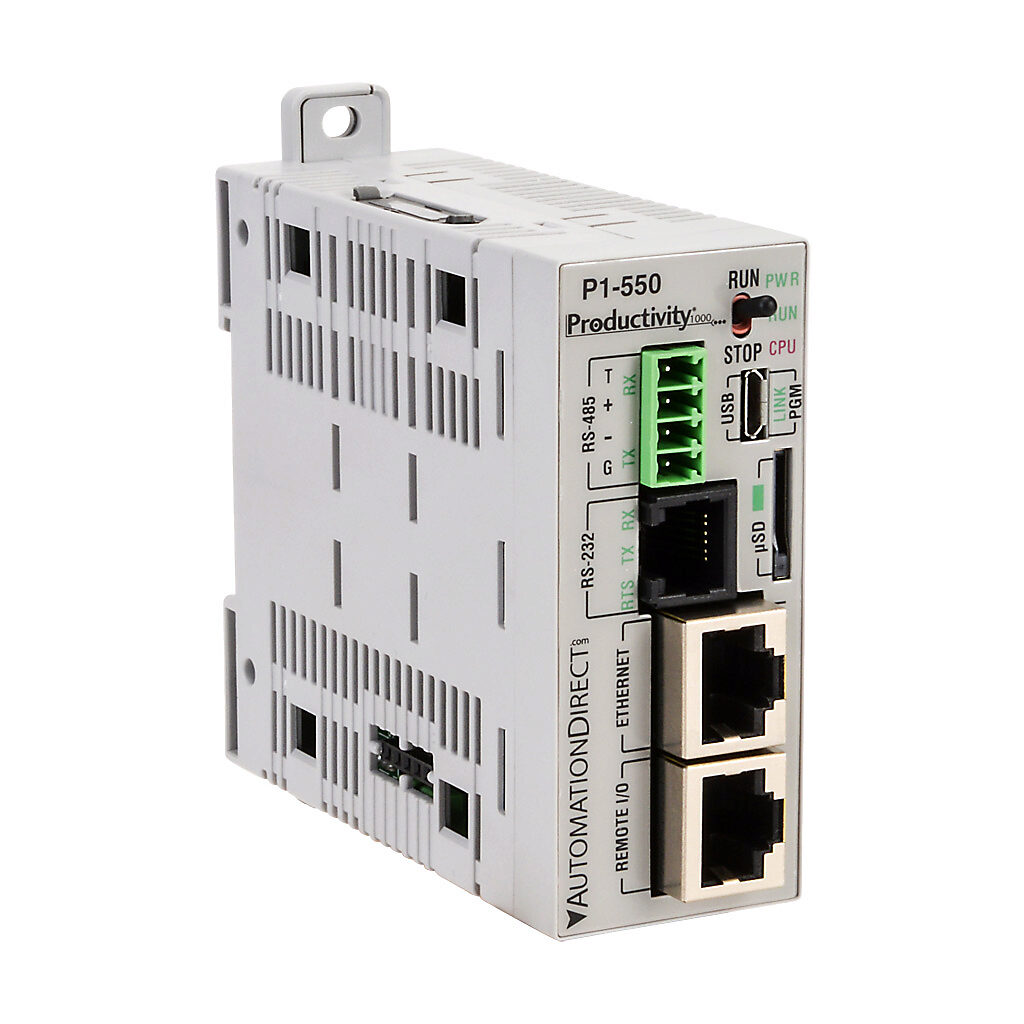

CPU for Productivity1000
The Productivity1000 series PLC is the super compact yet highly capable member of our Productivity controller family. Packed with many of the features you love about the Productivity series but housed in a smaller and slimmer design. The Productivity1000 PLC will deliver the time, space, and budget savings your project needs.
Features of the P1-550 CPU:
- High-performance CPU with 50MB of user memory, four built-in communication ports
- Plug-and-play USB programming (uses standard A-micro B cable)
- Tag database and program documentation storage in CPU (program pre-loaded on PC not necessary)
- High-speed Ethernet port for HMI and peer-to-peer or business system networking (no Ethernet communications module needed)
- Support for EtherNet/IP devices
- Two serial ports for peripheral device interface or controller networking
- Micro SD data logging right from the CPU
Specifications
- Quantity per product
- 1
- Short Description
Productivity1000 CPU, 50MB memory, 5 comm ports, MicroSD card slot
- Specifications
Specifications of the P1-550:
- Memory: up to 50 MByte total available user memory
- Programming language: Ladder logic and function blocks
- Features:
- Hardware auto-discovery
- Supports a maximum of 15 I/O modules, if used with 26W or larger power supply
- Real Time Clock/Calendar
- Battery for the retention of the Time and Date along with any Tagname values that are set up as retentive
- All project files (program, tag name database and all the program documentation) in the CPU
- Advanced instructions and task management boost program speed and efficiency
- Nimble math instructions
- Multi-level security options
- Run-time editing
- Easy data logging on microSD card
- Tag name database is friendly and flexible
- Communications:
- 2 Serial communications ports:
1 x RS-232 (RJ12) and 1 x RS-485 (4-wire terminal block), both supporting Modbus RTU and ASCII In/Out up to 115.2K baud rate - 1 x Ethernet port (Ethernet):
(10/100Mbps Ethernet) Programming, Monitoring, Debug, Firmware, Email SMTP Client, Modbus TCP Client (16 Servers) and Server (16 Clients), Ethernet / IP Scanner (32) and Adapter (4), Custom Protocol over Ethernet, ProNet. - 1 x Ethernet port (Remote I/O): 16 GS Drives, 4 Protos X TCP couplers
- 1 Micro USB communication port:
Programming, Monitoring, Debug, Firmware
- 2 Serial communications ports:
- Maximum I/O capacity: 240
- Includes: D2-BAT-1 battery
| Title | Download | |
|---|---|---|
| pdf Datasheet P1-550 | Download (pdf, 2.45 MB) | |
| Archive P1-550 Firmware 1.2.8.25 | Download (zip, 1.10 MB) | |
| pdf User Manual Productivity1000 (1st Ed. Rev. D) | Download (pdf, 52.13 MB) | |
| pdf ZIPLink Wiring system for P1000 PLCs | Download (pdf, 366 KB) |
